Eddystone Lighthouse

For the pop group, see Edison Lighthouse.
Eddystone Lighthouse

An aerial view of the fourth lighthouse. (The stub of the third lighthouse is visible in the background.)
Devon
Location offshore Rame Head
Devon
England
Coordinates 50°10′47.99″N 04°15′53.99″W / 50.1799972°N 4.2649972°W / 50.1799972; -4.2649972Coordinates: 50°10′47.99″N 04°15′53.99″W / 50.1799972°N 4.2649972°W / 50.1799972; -4.2649972
Year first constructed 1698 (first)
1709 (second)
1759 (third)
Year first lit 1882 (current)
Automated 1982
Deactivated 1703 (first)
1755 (second)
1877 (third)
Construction wooden tower (first and second)
granite tower (third and current)
Tower shape octagonal prism tower (first)
dodecagonal prism tower (second)
tapered cylindrical tower (third)
tapered cylindrical tower with lantern and helipad on the top (current)
Height 18 metres (59 ft) (first)
21 metres (69 ft) (second)
22 metres (72 ft) (third)
49 metres (161 ft) (current)
Focal height 41 metres (135 ft)
Current lens 4th order 250 mm rotating
Light source solar power
Intensity 26,200 candela
Range 17 nautical miles (31 km)
Characteristic Q (2) W 10s.
Iso R 10s. at 28 metres (92 ft) focal heght
Fog signal one blast every 30s.
Admiralty number A0098
NGA number 0132
ARLHS number ENG 039
Managing agent

Trinity House [1]

[2]

The Eddystone Lighthouse is on the dangerous Eddystone Rocks, 9 statute miles (14 km) south of Rame Head, England, United Kingdom. While Rame Head is in Cornwall, the rocks are in Devon[3] and composed of Precambrian gneiss.[4]

The current structure is the fourth to be built on the site. The first and second were destroyed by storm and fire. The third, also known as Smeaton's Tower, is the best known because of its influence on lighthouse design and its importance in the development of concrete for building. Its upper portions have been re-erected in Plymouth as a monument.[5] The first lighthouse, completed in 1699, was the world's first open ocean lighthouse although the Cordouan lighthouse preceded it as the first offshore lighthouse.[6]

The need for a light

The Eddystone Rocks are an extensive reef approximately 12 miles (19 km) SSW of Plymouth Sound, one of the most important naval harbours of England, and midway between Lizard Point, Cornwall and Start Point. They are submerged at high spring tides and were so feared by mariners entering the English Channel that they often hugged the coast of France to avoid the danger, which thus resulted not only in shipwrecks locally, but on the rocks of the north coast of France and the Channel Islands.[7] Given the difficulty of gaining a foothold on the rocks particularly in the predominant swell it was a long time before anyone attempted to place any warning on them.

Winstanley's lighthouse

Winstanley's lighthouse, as modified in 1699

The first lighthouse on Eddystone Rocks was an octagonal wooden structure built by Henry Winstanley. The lighthouse was also the first recorded instance of an offshore lighthouse.[6] Construction started in 1696 and the light was lit on 14 November 1698. During construction, a French privateer took Winstanley prisoner and destroyed the work done so far on the foundations, causing Louis XIV to order Winstanley's release with the words "France is at war with England, not with humanity".[5]

The lighthouse survived its first winter but was in need of repair, and was subsequently changed to a dodecagonal (12 sided) stone clad exterior on a timber framed construction with an octagonal top section as can be seen in the later drawings or paintings, one of which is reproduced here. This gives rise to the claims that there have been five lighthouses on Eddystone Rock. Winstanley's tower lasted until the Great Storm of 1703 erased almost all trace on 27 November. Winstanley was on the lighthouse, completing additions to the structure. No trace was found of him, or of the other five men in the lighthouse.[8][9]

The cost of construction and five years' maintenance totalled £7,814 7s.6d, during which time dues totalling £4,721 19s.3d had been collected at one penny per ton from passing vessels.

Rudyard's lighthouse

Elevation of Rudyard's lighthouse finished in 1709

Following the destruction of the first lighthouse, Captain John Lovett[10][note 1] acquired the lease of the rock, and by Act of Parliament was allowed to charge passing ships a toll of one penny per ton. He commissioned John Rudyard (or Rudyerd) to design the new lighthouse, built as a conical wooden structure around a core of brick and concrete. A temporary light was first shone from it in 1708[11] and the work was completed in 1709. This proved more durable, surviving nearly fifty years.[5]

On the night of 2 December 1755, the top of the lantern caught fire, probably through a spark from one of the candles used to illuminate the light. The three keepers threw water upwards from a bucket but were driven onto the rock and were rescued by boat as the tower burnt down. Keeper Henry Hall, who was 94 at the time, died from ingesting molten lead from the lantern roof.[5] A report on this case was submitted to the Royal Society[12] by the physician Dr. Edward Spry, and the piece of lead is now in the collections of the National Museums of Scotland.[13]

Smeaton's lighthouse

Main article: Smeaton's Tower
Smeaton's Lighthouse

The third lighthouse marked a major step forward in the design of such structures.

Recommended by the Royal Society, civil engineer John Smeaton modelled the shape on an oak tree, built of granite blocks. He pioneered 'hydraulic lime', a concrete that cured under water, and developed a technique of securing the granite blocks using dovetail joints and marble dowels. Construction started in 1756 at Millbay[14] and the light was first lit on 16 October 1759.[5]

Smeaton's lighthouse was 59 feet (18 m) high and had a diameter at the base of 26 feet (8 m) and at the top of 17 feet (5 m).

In 1841 major renovations were made,[15] under the direction of engineer Henry Norris of Messrs. Walker & Burges, including complete repointing, replacement water tanks and filling of a large cavity in the rock close to the foundations. It remained in use until 1877 when erosion to the rocks under the lighthouse caused it to shake from side to side whenever large waves hit.[16] Smeaton's lighthouse was rebuilt on Plymouth Hoe, in Plymouth, as a memorial. William Tregarthen Douglass supervised the dismantling and removal of Smeaton's Tower. The re-erected tower on the Hoe is now a tourist attraction.

The foundations and stub of the tower remain, close to the new and more solid foundations of the current lighthouse[5] – the foundations proved too strong to be dismantled so the Victorians left them where they stood.

An 1850 replica of Smeaton's lighthouse, Hoad Monument, stands above the town of Ulverston, Cumbria as a memorial to naval administrator Sir John Barrow.

Douglass's lighthouse

The current lighthouse and the stub of Smeaton's Tower.

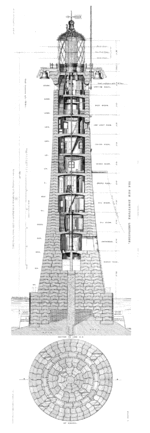

Original drawing of 4th Eddystone Lighthouse

The current, fourth, lighthouse was designed by James Douglass, using Robert Stevenson's developments of Smeaton's techniques. By April 1879 the new site, on the South Rock was being prepared during the 3½ hours between ebb and flood tide. The supply ship Hercules was based at Oreston, now a suburb of Plymouth, and the stone was prepared at the Oreston yard and supplied from the works of Messrs Shearer, Smith and Co of Wadebridge.[17][18]

The light was lit in 1882 and is still in use. It was automated in 1982, the first Trinity House 'Rock' (or offshore) lighthouse to be converted. The tower has been changed by construction of a helipad above the lantern, to allow maintenance crews access.[19]

The tower is 49 metres (161 ft) high, and its white light flashes twice every 10 seconds. The light is visible to 22 nautical miles (41 km), and is supplemented by a foghorn of 3 blasts every 62 seconds.[5]
