Director circle

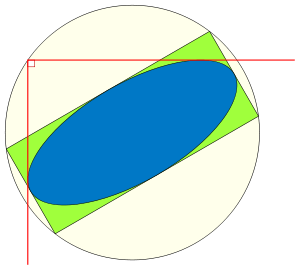

An ellipse, its minimum bounding box, and its director circle.

In geometry, the director circle of an ellipse or hyperbola (also called the orthoptic circle or Fermat–Apollonius circle) is a circle consisting of all points where two perpendicular tangent lines to the ellipse cross each other.

Properties

The director circle of an ellipse circumscribes the minimum bounding box of the ellipse. It has the same center as the ellipse, with radius ${\sqrt {a^{2}+b^{2}}}$, where $a$ and $b$ are the semi-major axis and semi-minor axis of the ellipse. Additionally, it has the property that, when viewed from any point on the circle, the ellipse spans a right angle.^[1]

The director circle of a hyperbola has radius √a² - b², and so, may not exist in the Euclidean plane, but could be a circle with imaginary radius in the complex plane.

Generalization

More generally, for any collection of points P_i, weights w_i, and constant C, one can define a circle as the locus of points X such that

$\sum w_{i}\,d^{2}(X,P_{i})=C.$

The director circle of an ellipse is a special case of this more general construction with two points P₁ and P₂ at the foci of the ellipse, weights w₁ = w₂ = 1, and C equal to the square of the major axis of the ellipse. The Apollonius circle, the locus of points X such that the ratio of distances of X to two foci P₁ and P₁ is a fixed constant r, is another special case, with w₁ = 1, w₂ = −r², and C = 0.

Related constructions

In the case of a parabola the director circle degenerates to a straight line, the directrix of the parabola.^[2]

Notes

1. Akopyan & Zaslavsky 2007, pp. 12–13
2. Faulkner 1952, p. 83
