Haydock Collieries

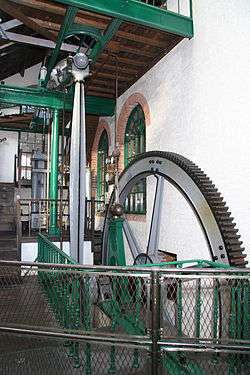

Haydock Colliery beam engine, preserved at the Museum of Science and Industry (Manchester)

Haydock Collieries was a colliery company situated in and around Haydock on the Lancashire Coalfield which is now in Merseyside, England.

Background

The shallow coal measures in the area had been worked from at least the 18th century when the major landowners were the Leghs of Lyme.[1] Around 1830, the collieries were run by Thomas Legh and William Turner and had a horse-drawn tramway connection to the Sankey Canal.[2] Richard Evans (1778–1864), a printer from Paternoster Row in London, bought a share in Edge Green Colliery in Golborne in 1830. In 1831 the collieries were connected to the growing railway network by a branch line to the Warrington and Newton Railway at Newton Junction.[2] Evans bought Legh's share of Turner and Legh's business, which then took the title Turner & Evans. When Turner died, in 1847, Evans acquired his share and the firm took the title Richard Evans & Sons.[3] The company remained in Evans' family ownership until 1889 when it became a public limited company which it remained until the formation of the National Coal Board in 1947.[4]

The collieries had access to considerable coal reserves but the workings were subject to flooding. Ram Pit sunk in 1901 never went into production because of flooding. Some collieries were connected underground to rationalise winding operations and facilitate ventilation.[5] In 1890 eight collieries were working.[6]

Four of the company's collieries survived to become part of the National Coal Board (NCB) in 1947. They were Golborne, Lyme Pits, Wood Pit and Old Boston employing a total of 3,195 underground and 557 surface workers.[7][8] The NCB's St.Helens Area Central Workshops were at Haydock until 1963.[9]

Evans family

Richard Evans (1778–1864) married Mary, daughter of Thomas Smith of Portsmouth, on 11 June 1810. They had six children, Richard (1811–1887), Anne (1812–1883), Joseph (1817–1889), Ruth (1819–1896), Josiah (1820–1873) and Henry (1823–1878). Joseph and Josiah followed their father into the business.[3]

Collieries

Haydock Mining Disasters Memorial at Saint James' Parish Church, Haydock
Golborne Colliery

The company owned several collieries in and around Haydock. Among them were:

Brynn Brynn Pit opened around 1870 and lasted until 1919.[10]

Downhall Green Downhall Green commenced winding in 1860 and lasted for 25 years.[10]

Edge Green Pit opened before 1849 and finished winding coal in 1920.[10]

Engine Engine Pit began winding in 1853 and finished in 1854.[10]

Golborne Colliery Golborne Colliery was started by Edward Johnson in 1878[11] and bought by Evans and Company in 1880. It was still working 100 years later.[10] In 1975 nearly 1000 men worked at the pit taking coal from the Crombouke, Lower Florida and Ince Six Feet mines.[11]

Haydock Colliery After the colliery closed, its workshops became the NCB Workshops. Its single-cylinder beam engine, used to drive the machinery until 1954, has been preserved.[6]

King Pit King Pit opened in 1891.[10] It was connected underground to the Princess, Queen and Legh Pits.[5]

Legh The Legh Pit opened in 1855 and closed in 1911.[10]

Lyme Pit Shaft sinking started at Lyme Pit in 1876 but was abandoned because the ingress of water could not be overcome by the technology of the time. Work recommenced in 1912 but was interrupted by the onset of the First World War. Work resumed in 1919 and the first coal was produced in 1922. The colliery had three shafts. The downcast shaft, No 1 was 395 yards (361 m) deep and wound coal from the Florida seam. The upcast shaft No 2, wound coal from the Potato Delf and Wigan Four Foot seams and No 3 shaft was used for pumping.[12] The Lyme Pit disaster occurred in February 1930 killing 13 men.[12] In 1964 419 miners and 187 surface workers were employed. The pit closed in March that year.[9]

New Boston The Old Boston Pit began winding coal in 1868 and closed in 1952.[10] The deepest of its three shafts reached 476 yards. The pit closed after an underground fire in 1952. From 1953 until 1989 the pit-head buildings were used as the Area Training Centre for miners.[13]

New Whint New Whint began winding coal in 1853 and finished a year later.[10]

Newton Colliery Newton Colliery was operational in 1896 and was nationalized in 1947.[7]

North Florida Pit was sunk in 1861 and wound coal until 1870.[10]

Old Boston Colliery The colliery was sunk in 1854 and lasted until 1910.[13]

Old Fold Old Fold commenced winding coal in 1850 and closed in 1864.[10]

Old Whint Old Whint began winding coal in 1853 and closed the same year.[10]

Parr Colliery Nos 1 and 2 shafts were sunk in 1871 and wound coal until 1926. Nos 3 and 4 shafts were sunk in 1893 and finished winding coal in 1931.[10] No 3 shaft was possibly the Havannah Pit which opened in 1863 and closed in 1889.[5]

Pewfall Pit Pewfall Pit opened in 1860 and closed in 1911.[10]

Princess Pit Princess Pit began winding in 1892 and was worked until 1920.[10] It was linked underground to the King, Queen and Legh Pits.[5]

Queen Pit Queen Pit opened before 1849 and closed in 1920.[10] It was linked underground to the King, Princess and Legh Pits.[5]

Wood Pit Wood Pit was sunk in 1866[10] and is notable for the Wood Pit Explosion of 1878. It closed in 1971.[10]

Colliery railways

The collieries were served by railways which linked to the Liverpool and Manchester Railway and the Warrington and Newton Railway. Excepting Edge Green and Golborne Collieries, all Evans' pits were connected by the company's private railway network.[14]

The earliest locomotives for use on the colliery system were obtained from the Vulcan Foundry and Jones and Potts. Little is known about them other than they were mostly tender locomotives of 0-4-0, 0-4-2 or 2-4-0 wheel arrangement. By 1864, 25 locomotives had been purchased. Later locomotives are listed in the following table.[15]

Name Wheels Builder Date Source
Ashton 2-2-2 ? ? ex-Hoylake Railway
Tempest 0-6-0 Vulcan Foundry ? ?
Fire King 0-6-0 Vulcan Foundry ? ?
Newton (1st) 0-6-0ST Sharp Stewart ? ?
Winsford ? ? ? ?
Black Diamond ? ? ? ?
Ant 0-4-0WT James Cross, St Helens b.1862 new
Bee 0-4-0WT James Cross, St Helens b.1862 new
Magnet 0-6-0ST Fox Walker b.1864 second hand
Amazon 0-6-0WT Haydock Foundry b.1868 new
Hercules 0-6-0WT Haydock Foundry b.1869 new
Makerfield 0-6-0WT Haydock Foundry b.1874 new
Bellerophon 0-6-0WT Haydock Foundry b.1874 new Preserved

Media related to Bellerophon at Wikimedia Commons

Parr 0-6-0WT Haydock Foundry b.1886 new
Golborne 0-6-0WT Haydock Foundry b.1887 new
Garswood 0-4-0ST Manning Wardle b.1900 new
Newton (2nd) 0-6-0ST Manning Wardle b.1900 new
Earlestown 0-6-0ST Manning Wardle b.1900 new
Haydock 0-6-0T Robert Stephenson b.1902 new
1600 0-6-0T Longhedge Works a.1940 ex-Southern Railway
LCDR T class[16]
Notes

Haydock Foundry

Bellerophon

Preserved at Embsay
Type and origin
Power type Steam
Designer Josiah Evans
Builder Haydock Foundry
Build date 1874
Specifications
Configuration 0-6-0WT
Gauge 4 ft 8 1⁄2 in (1,435 mm)
Driver dia. 4 ft 0 in (1.219 m)
Loco weight 35 long tons (36 t)
Fuel type Coal
Fuel capacity 2.5 long tons (2.5 t)
Water cap 600 imperial gallons
Boiler pressure 120 psi (0.83 MPa);
Cylinders Two, outside
Cylinder size 15 in × 22 in (381 mm × 559 mm)
Performance figures
Tractive effort 11,000 lbf (48.9 kN)
Career
Operators Haydock Collieries
National Coal Board

Haydock Foundry produced six 0-6-0 well tank steam locomotives, designed by Josiah Evans, for the collieries. They had outside Gooch valve gear and piston valves, a very early use of piston valves. They were named Amazon (built 1868), Hercules (1869), Makerfield (1874), Bellerophon (1874), Parr (1886) and Golborne (1887). Bellerophon is preserved at the Foxfield Railway.[17] The locomotives were broadly similar but had some detail differences. The first two had valves driven by rocking levers. The last four had direct drive to the valves. Working pressure was initially 120 psi but was later raised to 140 psi and then 160 psi. There is some uncertainty about the dates on which the higher pressures were applied. Josiah Evans died in 1873 and Smallwood attributes the design changes to his assistant, James Forrest.[18]

References

  1. ↑ Latham 1980, p. 2
  2. 1 2 Lathom 1980, p. 2
  3. 1 2 Smallwood, p. 1
  4. ↑ Lathom 1980, p. 3
  5. 1 2 3 4 5 Lathom 1980, p. 6
  6. 1 2 Ashmore 1982, p. 159
  7. 1 2 Richard Evans & Co. Ltd., Durham Mining Museum, retrieved 7 April 2014
  8. ↑ Location Maps, Coalmining History Resource Centre, retrieved 7 April 2014
  9. 1 2 Davies 2010, p. 53
  10. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Lathom 1980, p. 5
  11. 1 2 Davies 2010, p. 84
  12. 1 2 Lyme Pit. Haydock, Lancashire. 26th. February, 1930. (PDF), cmhrc.co.uk, pp. 4–17, retrieved 6 April 2014
  13. 1 2 Davies 2010, p. 54
  14. ↑ Latham 1980, p. 8
  15. ↑ Smallwood, p. 6
  16. ↑ "Kirtley T Class 0-6-0T". Semgonline.com. 2011-05-09. Retrieved 2013-03-26.
  17. ↑ "Bellerophon". Vintagecarriagestrust.org. Retrieved 26 March 2013.
  18. ↑ Smallwood, p. 12

Bibliography

  • Ashmore, Owen (1982), The Industrial archaeology of North-west England, Manchester University Press, ISBN 0-7190-0820-4
  • Davies, Alan (2010), Coal Mining in Lancashire & Cheshire, Amberley, ISBN 978-1-84868-488-1
  • Latham, J.B. (1980), Haydock Collieries Their locomotives and railways, Industrial Locomotive Society
  • Smallwood, Vernon, Bellerophon, Haydock to Haworth, Vintage Carriages Trust, Vintage Carriages Trust, ISBN 0-948530-02-2
