Intercepting filter pattern

Intercepting Filter is a JavaEE pattern which creates pluggable filters to process common services in a standard manner without requiring changes to core request processing code. The filters intercept incoming requests and outgoing responses, allowing preprocessing and post-processing, and these filters can be added or removed unobstrusively without changing existing code.[1] This pattern applies reusable processing transparently before and after the actual request execution by the front and page controllers.[2]

Structure

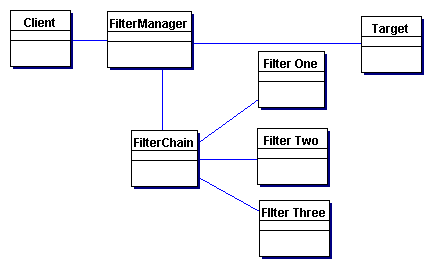

Filter manager, filter chain, filters and target are components of the pattern.

Filter manager

This manages filter processing and creates the filter chain with the appropriate filters, in the correct order, and initiates processing.[1]

Filter chain

This is an ordered collection of independent filters.[1]

Filters

These are the individual filters that are mapped to a target and their processing is coordinated by filter chain.[1]

Target

This is the resource requested by the client.[1]

Consequences

Following benefits can be considered:

Reduced performance can be concerned as unnecessarily long chains of interceptors and filters may hurt performance.[2]

Sample code

Sample code implementation for filters with custome filter strategy is given below.

Code for implementing a filter - debgging filter:

public class DebuggingFilter implements Processor {
  private Processor target;

  public DebuggingFilter(Processor myTarget) {
    target = myTarget;
  }

  public void execute(ServletRequest req,
  ServletResponse res) throws IOException,
    ServletException    {
    //Do some filter processing here, such as
    // displaying request parameters
    target.execute(req, res);
  }
}

[1]

Code for implementing a filter - core processor:

public class CoreProcessor implements Processor {
  private Processor target;
  public CoreProcessor()   {
    this(null);
  }

  public CoreProcessor(Processor myTarget)   {
    target = myTarget;
  }

  public void execute(ServletRequest req,
      ServletResponse res) throws IOException,
      ServletException   {
    //Do core processing here
  }
}

[1]

Code for handling requests:

public void processRequest(ServletRequest req,
  ServletResponse res)
  throws IOException, ServletException {
  Processor processors = new DebuggingFilter(
    new AuthenticationFilter(new CoreProcessor()));
  processors.execute(req, res);

  //Then dispatch to next resource, which is probably
  // the View to display
  dispatcher.dispatch(req, res);
}

[1]

Code for filter manager:

public void processRequest(ServletRequest req,
  ServletResponse res)
  throws IOException, ServletException {
  Processor processors = new DebuggingFilter(
    new AuthenticationFilter(new CoreProcessor()));
  processors.execute(req, res);

  //Then dispatch to next resource, which is probably
  // the View to display
  dispatcher.dispatch(req, res);
}

[1]

Code for filter chain:

public class FilterChain {
  // filter chain
  private Vector myFilters = new Vector();

  // Creates new FilterChain
  public FilterChain()  {
    // plug-in default filter services for example
    // only. This would typically be done in the
    // FilterManager, but is done here for example
    // purposes
    addFilter(new DebugFilter());
    addFilter(new LoginFilter());
    addFilter(new AuditFilter());
  }

  public void processFilter(
    javax.servlet.http.HttpServletRequest request,
    javax.servlet.http.HttpServletResponse response)
  throws javax.servlet.ServletException,
    java.io.IOException         {
    Filter filter;

    // apply filters
    Iterator filters = myFilters.iterator();
    while (filters.hasNext())
    {
      filter = (Filter)filters.next();
      // pass request & response through various
      // filters
      filter.execute(request, response);
    }
  }

  public void addFilter(Filter filter)  {
    myFilters.add(filter);
  }
}

[1]
