Lamb–Oseen vortex

In fluid dynamics, the Lamb–Oseen vortex models a line vortex that decays due to viscosity. This vortex is named after Horace Lamb and Carl Wilhelm Oseen.^[1]

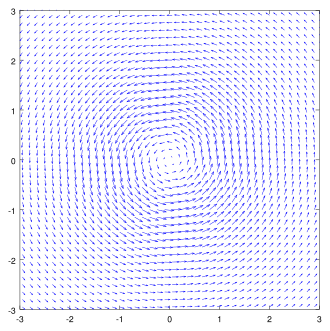

Vector plot of the Lamb–Oseen vortex.

The mathematical model for the flow velocity in the circumferential $\theta$–direction in the Lamb–Oseen vortex is:

$V_{\theta }(r,t)={\frac {\Gamma }{2\pi r}}\left(1-\exp \left(-{\frac {r^{2}}{r_{c}^{2}(t)}}\right)\right),$

with

• $r$ = radius,
• $r_{c}(t)={\sqrt {4\nu t}}$ = core radius of vortex,
• $\nu$ = viscosity, and
• $\Gamma$ = circulation contained in the vortex.

The radial velocity is equal to zero.

The associated vorticity distribution^[2] in the vortex-filament-direction (here ${\hat {z}}$) can be found with the curl:

${\displaystyle \omega _{z}(r,t)={\frac {\Gamma }{\pi r_{c}(t)^{2}}}\exp \left(-{\frac {r^{2}}{r_{c}^{2}(t)}}\right),}$

An alternative definition is to use the peak tangential velocity of the vortex rather than the total circulation

$V_{\theta }\left(r\right)=V_{{\theta \max }}\left(1+{\frac {1}{2\alpha }}\right){\frac {r_{\max }}{r}}\left[1-\exp \left(-\alpha {\frac {r^{2}}{r_{\max }^{2}}}\right)\right],$

where ${\displaystyle r_{\max }(t)={\sqrt {\alpha }}r_{c}(t)}$ is the radius at which $v_{\max }$ is attained, and the number α = 1.25643, see Devenport et al.^[3]

The pressure field simply ensures the vortex rotates in the circumferential direction, providing the centripetal force

${\partial p \over \partial r}=\rho {v^{2} \over r},$

where ρ is the constant density^[4]
