Microprocessor development board

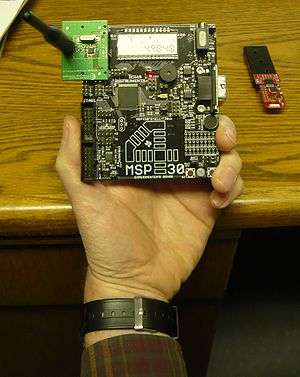

Photo of two experimenter boards for the MSP430 chipset by Texas Instruments. On the left the larger chip version, on the right a small version in USB format.

A microprocessor development board is a printed circuit board containing a microprocessor and the minimal support logic needed for an engineer to become acquainted with the microprocessor on the board and to learn to program it. It also served users of the microprocessor as a method to prototype applications in products.

Unlike a general-purpose system such as a home computer, usually a development board contains little or no hardware dedicated to a user interface. It will have some provision to accept and run a user-supplied program, such as downloading a program through a serial port to flash memory, or some form of programmable memory in a socket in earlier systems.

History

The reason for the existence of a development board was solely to provide a system for learning to use a new microprocessor, not for entertainment. So everything superfluous was left out to keep costs down. Even an enclosure was not supplied, nor a power supply. This is because the board would only be used in a "laboratory" environment so it did not need an enclosure, and the board could be powered by a typical bench power supply already available to an electronic engineer.

Microprocessor training development kits were not always produced by microprocessor manufacturers. Many systems that can be classified as microprocessor development kits were produced by third parties, one example is the Sinclair MK14, which was inspired by the official SC/MP development board from National Semiconductor, the "NS introkit".[1]

Although these development boards were not designed for hobbyists, they were often bought by them because they were the earliest cheap microcomputer devices you could buy. They often added all kinds of expansions, such as more memory, a video interface etc. It was very popular to use (or write) an implementation of Tiny Basic. The most popular microprocessor board, the KIM-1, received the most attention from the hobby community, because it was much cheaper than most other development boards, and you could get more software for it (Tiny Basic, games, assemblers), and cheap expansion cards to add more memory or other functionality.[2] More articles were published in magazines like "Kilobaud Microcomputing" that described home-brew software and hardware for the KIM-1 than for other development boards.[3]

Today some chip producers still release "test boards" to demonstrate their chips, and to use them as a "reference design". Their significance these days is much smaller than it was in the days that such boards, (the KIM-1 being the canonical example) were the only low cost way to get "hands-on" acquainted with microprocessors..

Features

The most important feature of the microprocessor development board was the ROM based built-in machine language monitor, or "debugger" as it was also sometimes called. Often the name of the board was related to the name of this monitor program, for example the name of the monitor program of the KIM-1 was "Keyboard Input Monitor", because the ROM based software allowed entry of programs without the rows of cumbersome toggle switches that older systems used. The popular 6800 based systems often used a monitor with a name with the word "bug" for "debugger" in it, for example the popular "MIKBUG".[4]

Input was normally done with a hexadecimal keyboard, using a machine language monitor program, and the display only consisted of a 7-segment display. Backup storage of written assembler programs was primitive: only a cassette type interface was typically provided, or the serial Teletype interface was used to read (or punch) a papertape.[5]

Often the board has some kind to expansion connector that brought out all the necessary CPU signals, so that an engineer could build and test an experimental interface or other electronic device.

External interfaces on the bare board were often limited to a single RS-232 or current loop serial port, so a terminal, printer, or Teletype could be connected.

List of historical development boards

Dragon12-P Freescale HCS12/9S12 microcontroller trainer, an All-In-One EVB, EVBU and project development board.
