Rail transport in Norway

Norway

Bergensbanen at Finse, the highest point of the Norwegian railways.
Operation
National railway Norges Statsbaner
Infrastructure company Jernbaneverket
Statistics
Ridership 58.4 million (2010)[1]
Passenger km 3,134 million (2010)[1]
Freight 27.2 million tonnes (2010)[2]
System length
Total 4,087 kilometres (2,540 mi)
Double track 242 kilometres (150 mi)
Electrified 2,622 kilometres (1,629 mi)
High-speed 64 kilometres (40 mi)
Track gauge
Main 1,435 mm (4 ft 8 1⁄2 in)
Electrification
Main 15 kV  16 2⁄3 Hz AC
Features
No. tunnels 696
Longest tunnel Romeriksporten
No. bridges 2,760
Longest bridge Strømsløpet Bridge
Highest elevation 1,237 metres (4,058 ft)
 at Finse
A Class 63 steam engine

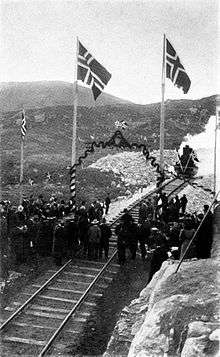

The completion of Bergensbanen

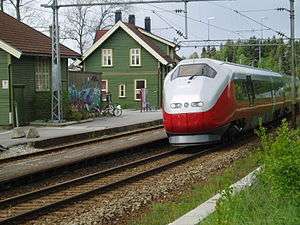

A BM 73b at Råde Station

The Norwegian railway system comprises 4,087 km of 1,435 mm (4 ft 8 1⁄2 in) (standard gauge) track of which 2,622 km is electrified and 242 km double track. There are 696 tunnels and 2760 bridges.

Jernbaneverket is a state owned agency which builds and maintains all railway tracks, while other companies operate them. These companies include Norges Statsbaner, NSB Anbud, CargoNet, Flytoget, Hector Rail, Tågåkeriet and Ofotbanen.

Norway is a member of the International Union of Railways (UIC). The UIC Country Code for Norway is 76.

History

Map of the railway lines in Norway.
— electrified lines
— non-electrified lines
— disused or heritage lines

The first railway in Norway was Hovedbanen between Oslo and Eidsvoll and opened in 1854. The main purpose of the railway was to freight lumber from Mjøsa to the capital, but also passenger traffic was offered. In the period between the 1860s and the 1880s Norway saw a boom of smaller railways being built, including isolated railways in Central and Western Norway. The predominant gauge at the time was 1,067 mm (3 ft 6 in) (narrow gauge), but some lines were built in 1,435 mm (4 ft 8 1⁄2 in) (standard gauge). The height of the era came in 1877 when Rørosbanen connected Central Norway to the capital. In 1883 the entire main railway network was taken over by NSB, though a number of industrial railways and branch lines continued to be operated by private companies.

Three urban railways, in Oslo, Bergen and Trondheim, were started as in 1875 (Oslo), 1897 (Bergen) and Trondheim (1901. Oslo's system as the only one, started with horse cars, the two other as with electric cars. Electric cars were introduced in Oslo in 1894 and the last horse car operated in 1900.

Bergen closed down its 1. generation system between 1944 and 1965, but (re-)introduced LRT in 2006.

The second construction boom of the main railway arose in the 1910s and included the Bergensbane across Finse to Bergen, connecting Eastern and Western Norway. Also a number of other larger projects were built through the 1920s, including a second line, Dovrebanen, to Trondheim. This period also saw the first electrified railways and a steady conversion from narrow gauge to standard gauge. Norway chose to electrify their network at 15 kV  16 2⁄3 Hz AC.

During World War II there was a massive construction by the German Forces as part of creating Festung Norwegen, including large sections of Nordlandsbanen and the completion of Sørlandsbanen. After the war the main effort was to complete Nordlandsbanen (that reached Bodø in 1962) and completing the decision to electrify 50% of the network, a task not completed until 1970. This allowed the retirement of the steam locomotive, being replaced with electric engines like the El 11 and El 13 or the diesel powered Di 3. In 1966 Norway's only rapid transit, Oslo T-bane was opened, but in the same decade the Bergen tramway was closed. In the 1970s and 80s a lot of branch lines were also abandoned.

In 1980 the massive project of connecting the eastern and western railway networks around Oslo was completed with the opening of the Oslo Tunnel and Oslo Central Station. In 1996 NSB was split in the Norwegian Railway Inspectorate, Jernbaneverket and operating company NSB BA. Since the companies have been split into 10 separate companies and corporations. In 1998 the first new line in 36 years was opened when the high-speed railway Gardermobanen was opened to allow travel at 210 km/h between Oslo, Oslo Airport and Eidsvoll. The 1990s also saw the massive introduction of multiple units on passenger trains. In the 2000s the freight segment was deregulated and a number of freight companies have started competing with the NSB partial subsidiary CargoNet.

Network

Track

The main railway network consists of 4087 km of lines, of which 262 km is double track and 60 km high-speed rail (210 km/h). In addition there is 225 km of urban railways, of which 218 km is double track. In addition there are some industrial tracks and minor branch lines and some abandoned and heritage railways. The entire main network is 1,435 mm (4 ft 8 1⁄2 in) (standard gauge), as are the urban railways in Oslo and Bergen. Of the operational railways in Norway, only the Trondheim Tramway has a different gauge, the meter gauge, 1,000 mm (3 ft 3 3⁄8 in). Some heritage railways, though, operate with various kinds of narrow gauge.

Kirkenes-Bjørnevatnbanen used to be the northernmost railway in the world, but was in 2010 beaten by the Obskaya–Bovanenkovo Line in Russia. Still, Narvik is one of the northernmost towns in the world to have a railway connection, as the terminus for Ofotbanen. It connects to Kiruna, Sweden, but not to Bodø, the northern terminus of the Norwegian railway network. Kiruna is, however, connected to the Swedish railway network, which again is connected to the Norwegian network at the Swedish station of Charlottenberg, Storlien and Kornsjø.

Traction

2622 km (64%) of the railway network is electrified, all of it at 15 kV  16 2⁄3 Hz AC with overhead wires. The only sections that are not electrified are the lines north of Mjøsa, with the sole exception of Dovrebanen and the Ofotbanen. On non-electrified sections diesel locomotives are used. All of the urban railways use 750 V DC, via overhead wires on the tramways and via third-rail on the Oslo T-bane.

Future expansion plans

In its plans, Jernbaneverket will concentrate its expansions primarily on the cramped network around Oslo and the larger cities.

[3]

High speed rail

The question about building a high-speed railway between the largest Southern Norwegian cities has been discussed at political level, and a report was ready by the end of 2007. Advocates for rail transport and environmentalists have wanted to build high speed railways, including upgrades to 250 km/h on Sørlandsbanen, Bergensbanen and Dovrebanen while others, including Norsk Bane, have suggested construction of a new line through Haukeli to Stavanger, Haugesund and Bergen.

Heritage

There are also several operational museum railways in Norway, including Krøderbanen, Setesdalsbanen, Aurskog-Hølandsbanen, Thamshavnbanen, Rjukanbanen, Valdresbanen, Nesttun-Osbanen and Gamle Vossebanen. The Norwegian Railway Museum is located in Hamar and includes exhibits of train hardware, related objects, as well as document and photography archives.

Sweden is the only country with which Norway shares railway borders. Sweden and Norway share gauge, loading gauge, signaling system, electric system, GSM-R and automatic trains stop systems. Most rolling stock can cross the border. There are four border crossings: the Østfold Line–Norway/Vänern Line, the Kongsvinger Line–Värmland Line, the Meråker Line–Central Line and the Ofoten Line–Iron Ore Line. All crossings have electric traction on the Swedish side, but the Meråker Line lacks it on the Norwegian side. There have previously been operational train ferries to Denmark.

There are proposals to connect Northern Norway to Finland and Russia. At Kirkenes, the Kirkenes–Bjørnevatn Line is proposed to be connected to Russia's Murmansk–Nikel Railway,[4] and the line is also proposed for connection to the Finnish network in Rovaniemi (there has been a line between Rovaniemi and the Murmansk railway).[5][6] Russia has generally dismissed this proposal in favour of using Russian ports instead of Kirkenes. Another proposal has been to build a line from Kolari to Skibotn and Tromsø,[7] even if connecting to the existing line to Narvik is the main suggestion.

Operation

Railway companies

Traditionally, all trains were operated by NSB, but the deregulation in the 2000s has led to the introduction of a number of new freight operators, including CargoNet, Hector Rail, Tågåkeriet and Ofotbanen. The conservative-liberal government tried to introduce public service obligation bids on subsidized passenger routes in 2005, but the contract was won by the NSB subsidiary NSB Anbud and the following red-green government has cancelled further PSO contracting. Also the Airport Express Train has been made a separate company.

Passenger rolling stock

Until the 1990s only commuter and regional trains were operated with multiple units, but since then NSB has ordered numerous multiple units for its regional and express lines. Express trains are operated with 16 BM 73 units with tilting technology, regional trains with 16 BM 70, 6 BM 73b (both electric) and 15 BM 93 (diesel) units while the local trains are operated by 71 BM 69 and 36 BM 72 (both electric) while the local trains around Trondheim, Trønderbanen, uses 14 BM 92 diesel multiple unit. The Airport Express Train uses 16 BM 71 and NSB Anbud operates 9 BM 69g units. Ofotbanen operates three BM 68 electric multiple units.

NSB still uses locomotive hauled passenger trains on a few of the long distance lines. For this task they use 22 El 18s and 5 Di 4s in addition to six El 17 on Flåmsbana. Most of the cars are B7 on long distance services and B5 on regional services. Most of the locomotives have been transferred to the freight division CargoNet.

Freight rolling stock

CargoNet uses a combination of 30 El 14, 15 El 16, 19 Di 8 and 6 CD66. The other companies use stock retired by NSB, including Ofotbanen's 7 El 13, 5 Di 3 and 2 T43, HectorRail's 6 El 15 (now known as 161) and Tåkåkeriet's Rc2.

Norwegian railway network

Fully operational lines

Line name Termini Length Power Opened Other info
Bergensbanen Hønefoss Bergen 371 km Electric 01.12.1909 Operated route Oslo S–Drammen-Bergen (495 km)
Flåmsbana Myrdal Flåm 20 km Electric 15.10.1941 Branch to Bergensbanen
Randsfjordbanen Hokksund Hønefoss 54 km Electric 13.10.1868 Operated as part of Bergensbanen
Bratsbergbanen Eidanger Nordagutu 47 km Electric 17.12.1917 Operated route Porsgrunn-Notodden (incl. Tinnosbanen)
Eidanger–Skien operated as part of Vestfoldbanen
Tinnosbanen Hjuksebø Notodden 10 km Electric 09.08.1909 Operated route Porsgrunn-Notodden as part of Bratsbergbanen
Dovrebanen Eidsvoll Trondheim 492 km Electric 20.09.1921 Operated route Oslo S–Dombås-Trondheim (553 km)
Raumabanen Dombås Åndalsnes 115 km Diesel 30.11.1924 Operated as branch to Dovrebanen
Drammenbanen Oslo S Drammen 42 km Electric 07.10.1872
Askerbanen Sandvika Asker 15 km Electric 01.08.2005 Parallel line to Drammenbanen
Spikkestadbanen Asker Spikkestad 12 km Electric (07.10.1872)
03.06.1973		 Branch to and originally part of Drammenbanen
Operated route Spikkestad-Oslo S-Lillestrøm
Gardermobanen Etterstad Eidsvoll 64 km Electric 22.08.1999 Operated route Oslo S-Lillestrøm-Gardermoen/-Eidsvoll
Gjøvikbanen Oslo S Gjøvik 123 km Electric 28.11.1902
Hovedbanen Oslo S Eidsvoll 84 km Electric 01.09.1854
Kongsvingerbanen Lillestrøm Charlottenberg 116 km Electric 04.11.1865 Operated route Oslo S-Lillestrøm-Kongsvinger/-Sweden
Continues as Värmlandsbanan
Meråkerbanen Hell Storlien 70 km Diesel 17.10.1881 Operated route Trondheim-Hell-Meråker-Sweden
Continues as Mittbanan
Nordlandsbanen Trondheim Bodø 734 km Diesel 01.02.1962
Ofotbanen Narvik Bjørnfjell 43 km Electric 15.11.1902 Continues as Malmbanan
Rørosbanen Hamar Støren 382 km Diesel 17.10.1877 Operated route Oslo S-Hamar-Røros-Trondheim
Sørlandsbanen Drammen Stavanger 549 km Electric 01.03.1944 Operated route Oslo S-Kristiansand-Stavanger (588 km)
Arendalsbanen Arendal Nelaug 36 km Electric (18.12.1910)
22.06.1938		 Branch to Sørlandsbanen
Originally part of Treungenbanen
Vestfoldbanen Drammen Eidanger 138 km Electric 24.11.1882 Operated route (Lillehammer-)Oslo S-Skien
Østfoldbanen Oslo S Kornsjø 171 km Electric 25.07.1879 Operated route Oslo S-Halden/-Sweden
Continues as Norge/Vänernbanan
Østfoldbanen, Eastern line Ski, Norway Rakkestad 54 km Electric 24.11.1882 Operated route Oslo S-Rakkestad

Freight only lines

Line name Termini Length Power Opened Other info
Alnabru-Grefsenlinjen Grefsen Alnabru 4 km Electric 20.01.1901 Connecting Hovedbanen and Gjøvikbanen
Brevikbanen Eidanger Brevik 9 km Electric 24.11.1882 Branch to Vestfoldbanen
Dalane–Suldallinjen Dalane Suldal 1 km Electric 15.05.1943 Bypass to Sørlandsbanen
Loenga–Alnabrulinjen Loenga Alnabru 3 km Electric 01.05.1907 Connecting Hovedbanen and Østfoldbanen
Roa-Hønefossbanen Roa Hønefoss 34 km Electric 01.12.1909 Operated as branch to Bergensbanen
Skøyen–Filipstadlinjen Skøyen Filipstad 2 km Electric (07.10.1872)
01.06.1980		 Branch to and originally part of Drammenbanen
Solørbanen Kongsvinger Elverum 88 km Diesel 04.12.1910 Connecting Kongsvingerbanen and Rørosbanen
Stavne-Leangenbanen Stavne Leangen 6 km Diesel 24.11.1882 Connecting Dovrebanen and Nordlandsbanen
Østfoldbanen, Eastern line Rakkestad Sarpsborg 26 km Electric 24.11.1882 Alternate for Østfoldbanen

Lines with no regular traffic

Line name Termini Length Power Opened Discontinued Other info
Nesttunbanen Bergen Minde 4 km Electric 11.07.1883 01.02.1965 Branch to Bergensbanen
Hardangerbana Voss Palmafoss 3 km Electric 01.04.1935 01.06.1985 Branch to Bergensbanen
Kragerøbanen Neslandsvatn Merkebekk 6 km Diesel 02.12.1927 01.01.1989 Branch to Sørlandsbanen
Namsosbanen Grong Namsos 52 km Diesel 01.11.1933 01.01.1978 Branch to Nordlandsbanen
Numedalsbanen Kongsberg Rollag 48 km Diesel 20.11.1927 01.01.1989 Branch to Sørlandsbanen
Treungenbanen Nelaug Simonstad 8 km Diesel 18.12.1910 01.01.1967 Branch to Sørlandsbanen

Heritage railway

Line name Termini Length Power Opened Discontinued Other info
Gamle Vossebanen Tunestveit Midttun 22 km Steam 11.07.1883 01.08.1964 Connection to Bergensbanen
Krøderbanen Vikersund Krøderen 26 km Steam 28.11.1872 19.01.1958 Connection to Bergensbanen
Tinnosbanen Notodden Tinnoset 30 km Electric 09.08.1909 05.07.1991 Connected by ferry
Connection to Bratsbergbanen
Rjukanbanen Mæl Rjukan 16 km Electric 09.08.1909 05.07.1991
Setesdalsbanen Grovane Røyknes 8 km Steam 27.11.1896 02.09.1962 Connection to Sørlandsbanen
Urskog–Hølandsbanen Sørumsand Fossum 4 km Steam 07.12.1903 01.07.1960
Thamshavnbanen Bårdshaug Svorkmo 22 km Electric 15.07.1908 30.05.1974
Valdresbanen Eina Dokka 47 km Diesel 28.11.1902 01.01.1989 Connection to Gjøvikbanen

No traffic allowed

Line name Termini Length Power Opened Discontinued Other info
Flekkefjordbanen Sira Flekkefjord 17 km Diesel 01.11.1904 01.01.1991 Branch to Sørlandsbanen
Kragerøbanen Merkebekk Sannidal 12 km Diesel 02.12.1927 01.01.1989 Branch to Sørlandsbanen
Numedalsbanen Rollag Rødberg 45 km Diesel 20.11.1927 01.01.1989 Branch to Sørlandsbanen
Valdresbanen Dokka Bjørgo 43 km Diesel 01.11.1903 01.01.1989 Branch to Gjøvikbanen

Urban railways

Abandoned railways

See Chronology of Norwegian railway lines.

Abandoned urban railways
