Thumb

For other uses, see Thumb (disambiguation).
Thumb

Bones of the thumb, visible at left.
Details
Artery Princeps pollicis artery
Vein Dorsal venous network of hand
Nerve Dorsal digital nerves of radial nerve, proper palmar digital nerves of median nerve
Lymph Infraclavicular lymph nodes[1]
Identifiers
Latin pollex
digitus I manus
digitus primus manus
MeSH A01.378.800.667.430.705
TA A01.1.00.053
FMA 24938

Anatomical terminology

The thumb is the first digit of the hand. When a person is standing in the medical anatomical position (where the palm is facing to the front), the thumb is the outermost digit. The Medical Latin English noun for thumb is pollex (compare hallux for big toe), and the corresponding adjective for thumb is pollical.

Definition

Thumb and finger

The English word "finger" has two senses, even in the context of appendages of a single typical human hand:

  1. Any of the five digits.
  2. Any of the four terminal members of the hand, especially those other than the thumb.

Linguistically, it appears that the original sense was the broader of these two: penkwe-ros (also rendered as penqrós) was, in the inferred Proto-Indo-European language, a suffixed form of penkwe (or penqe), which has given rise to many Indo-European-family words (tens of them defined in English dictionaries) that involve or flow from concepts of fiveness.

The thumb shares the following with each of the other four fingers:

The thumb contrasts with each of the other four by being the only digit that:

and hence the etymology of the word: "tum" is Proto-Indo-European for "swelling" (cf "tumour" and "thigh") since the thumb is the stoutest of the fingers.

Opposition and apposition

A bonobo "fishing" for termites, an example of incomplete/"untrue" opposition.[2]

In humans, opposition and apposition are two movements unique to the thumb, but these words are not synonyms:

Primatologists and hand research pioneers John and Prudence Napier defined opposition as: "A movement by which the pulp surface of the thumb is placed squarely in contact with - or diametrically opposite to - the terminal pads of one or all of the remaining digits." For this true, pulp-to-pulp opposition to be possible, the thumb must rotate about its long axis (at the carpometacarpal joint).[3] Arguably, this definition was chosen to underline what is unique to the human thumb.

Anatomists and other researchers focused exclusively on human anatomy, on the other hand, tend to elaborate this definition in various ways and, consequently, there are hundreds of definitions.[4] Some anatomists[5] restrict opposition to when the thumb is approximated to the fifth digit (little finger) and refer to other approximations between the thumb and other digits as apposition. To anatomists, this makes sense as two intrinsic hand muscles are named for this specific movement (the opponens pollicis and opponens digiti minimi respectively).

Other researchers use another definition,[4] referring to opposition-apposition as the transition between flexion-abduction and extension-adduction; the side of the distal thumb phalanx thus approximated to the palm or the hand's radial side (side of index finger) during apposition and the pulp or "palmar" side of the distal thumb phalanx approximated to either the palm or other digits during opposition.

Moving a limb back to its neutral position is called reposition and a rotary movement is referred to as circumduction.

Human anatomy

Skeleton

The skeleton of the thumb consists of the first metacarpal bone which articulates proximally with the carpus at the carpometacarpal joint and distally with the proximal phalanx at the metacarpophalangeal joint. This latter bone articulates with the distal phalanx at the interphalangeal joint. Additionally, there are two sesamoid bones at the metacarpophalangeal joint.

Muscles

Main article: Muscles of the thumb

The muscles of the thumb can be compared to guy-wires supporting a flagpole; tension from these muscular guy-wires must be provided in all directions to maintain stability in the articulated column formed by the bones of the thumb. Because this stability is actively maintained by muscles rather than by articular constraints, most muscles attached to the thumb tend to be active during most thumb motions.[6]

The muscles acting on the thumb can be divided into two groups: The extrinsic hand muscles, with their muscle bellies located in the forearm, and the intrinsic hand muscles, with their muscles bellies located in the hand proper.[7]

Extrinsic

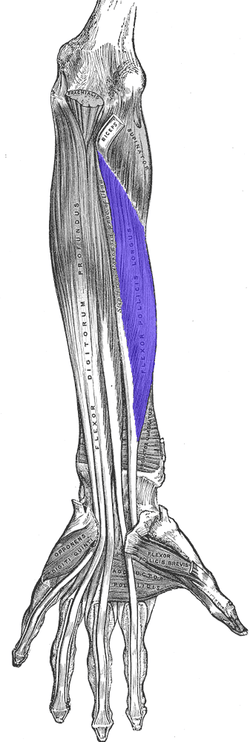

Flexor pollicis longus (left) and deep muscles of dorsal forearm (right)

A ventral forearm muscle, the flexor pollicis longus (FPL) originates on the anterior side of the radius distal to the radial tuberosity and from the interosseous membrane. It passes through the carpal tunnel in a separate tendon sheath, after which it lies between the heads of the flexor pollicis brevis. It finally attaches onto the base of the distal phalanx of the thumb. It is innervated by the anterior interosseus branch of the median nerve (C7-C8)[8]

Three dorsal forearm muscles act on the thumb:

The abductor pollicis longus (APL) originates on the dorsal sides of both the ulna and the radius, and from the interosseous membrane. Passing through the first tendon compartment, it inserts to the base of the first metacarpal bone. A part of the tendon reaches the trapezium, while another fuses with the tendons of the extensor pollicis brevis and the abductor pollicis brevis. Except for abducting the hand, it flexes the hand towards the palm and abducts it radially. It is innervated by the deep branch of the radial nerve (C7-C8).[9]

The extensor pollicis longus (EPL) originates on the dorsal side of the ulna and the interosseous membrane. Passing through the third tendon compartment, it is inserted onto the base of the distal phalanx of the thumb. It uses the dorsal tubercle on the lower extremity of the radius as a fulcrum to extend the thumb and also dorsiflexes and abducts the hand at the wrist. It is innervated by the deep branch of the radial nerve (C7-C8).[9]

The extensor pollicis brevis (EPB) originates on the ulna distal to the abductor pollicis longus, from the interosseus membrane, and from the dorsal side of the radius. Passing through the first tendon compartment together with the abductor pollicis longus, it is attached to the base of the proximal phalanx of the thumb. It extends the thumb and, because of its close relationship to the long abductor, also abducts the thumb. It is innervated by the deep branch of the radial nerve (C7-T1).[9]

The tendons of the extensor pollicis longus and extensor pollicis brevis form what is known as the anatomical snuff box (an indentation on the lateral aspect of the thumb at its base) The radial artery can be palpated anteriorly at the wrist(not in the snuffbox).

Intrinsic

Thenar (left) and dorsal interossei (right) muscles

There are three thenar muscles:

The abductor pollicis brevis (APB) originates on the scaphoid tubercle and the flexor retinaculum. It inserts to the radial sesamoid bone and the proximal phalanx of the thumb. It is innervated by the median nerve (C8-T1).[10]

The flexor pollicis brevis (FPB) has two heads. The superficial head arises on the flexor retinaculum, while the deep head originates on three carpal bones: the trapezium, trapezoid, and capitate. The muscle is inserted onto the radial sesamoid bone of the metacarpophalangeal joint. It acts to flex, adduct, and abduct the thumb, and is therefore also able to oppose the thumb. The superficial head is innervated by the median nerve, while the deep head is innervated by the ulnar nerve (C8-T1).[10]

The opponens pollicis originates on the tubercle of the trapezium and the flexor retinaculum. It is inserted onto the radial side of the first metacarpal. It opposes the thumb and assists in adduction. It is innervated by the median nerve.[10]

Other muscles involved are:

The adductor pollicis also has two heads. The transversal head originates along the entire third metacarpal bone, while the oblique head originates on the carpal bones proximal to the third metacarpal. The muscle is inserted onto the ulnar sesamoid bone of the metacarpophalangeal joint. It adducts the thumb, and assists in opposition and flexion. It is innervated by the deep branch of the ulnar nerve (C8-T1).[10]

The first dorsal interosseous, one of the central muscles of the hand, extends from the base of the thumb metacarpal to the radial side of the proximal phalanx of the index finger.[11]

Variation

Hitchhiker's thumb

There is a variation in the angle between the first, second phalanges of the thumb of humans, varying between 0° and almost 90° when the thumb is extended in a "thumbs-up".[12] It has been suggested that the variation is an autosomal recessive trait, called a "Hitchhiker's thumb", with homozygous carriers having an angle close to 90°.[13] However this has been disputed, as the variation in thumb angle is continuous and shows little evidence of the bi-modality seen in recessive traits.[12]

Malformations of the thumb include a triphalangeal thumb and polydactyly.

Grips

Left: In a power grip the object is in contact with the palm.
Right: Cricketer Jack Iverson's "bent finger grip", an unusual pad-to-side precision grip designed to confuse batsmen.

One of the earlier significant contributors to the study of hand grips was orthopedic primatologist and paleoanthropologist John Napier, who proposed organizing the movements of the hand by their anatomical basis as opposed to work done earlier that had only used arbitrary classification.[14] Most of this early work on hand grips had a pragmatic basis as it was intended to narrowly define compensable injuries to the hand, which required an understanding of the anatomical basis of hand movement. Napier proposed two primary prehensile grips: the precision grip and the power grip.[15] The precision and power grip are defined by the position of the thumb and fingers where:

Thumb and index finger during pad-to-pad precision grasping.[16]

Opposability of the thumb should not be confused with a precision grip as some animals possess semi-opposable thumbs yet are known to have extensive precision grips (Tufted Capuchins for example).[17] Nevertheless, precision grips are usually only found in higher apes, and only in degrees significantly more restricted than in humans.[18]

The pad-to-pad pinch between the thumb and index finger is made possible because of the human ability to passively hyperextend the distal phalanx of the index finger. Most non-human primates have to flex their long fingers in order for the small thumb to reach them.[19]

In humans, the distal pads are wider than in other primates because the soft tissues of the finger tip are attached to a horseshoe-shaped edge on the underlying bone, and, in the grasping hand, the distal pads can therefore conform to uneven surfaces while pressure is distributed more evenly in the finger tips. The distal pad of the human thumb is divided into a proximal and a distal compartment, the former more deformable than the latter, which allows the thumb pad to mold around an object.[19]

Evolution

A primitive autonomization of the first carpometacarpal joint (CMC) may have occurred in dinosaurs. A real differentiation appeared perhaps 70 mya in early primates, while the shape of the human thumb CMC finally appears about 5 mya. The result of this evolutionary process is a human CMC joint positioned at 80° of pronation, 40 of abduction, and 50° of flexion in relation to an axis passing through the second and third CMC joints.[20]

Opposable thumbs are shared by some primates, including most catarrhines. The climbing and suspensory behaviour in orthograde apes, such as chimpanzees, has resulted in elongated hands while the thumb has remained short. As a result, these primates are unable to perform the pad-to-pad grip associated with opposability. However, in pronograde monkeys such as baboons, an adaptation to a terrestrial lifestyle has led to reduced digit length and thus hand proportions similar to those of humans. Consequently, these primates have dexterous hands and are able to grasp objects using a pad-to-pad grip. It can thus be difficult to identify hand adaptations to manipulation-related tasks based solely on thumb proportions.[21]

The evolution of the fully opposable thumb is usually associated with Homo habilis, a forerunner of Homo sapiens.[22] This, however, is the suggested result of evolution from Homo erectus (around 1 mya) via a series of intermediate anthropoid stages, and is therefore a much more complicated link.

Modern humans are unique in the musculature of their forearm and hand. Yet, they remain autapomorphic, meaning each muscle is found in one or more non-human primates. The extensor pollicis brevis and flexor pollicis longus allow modern humans to have great manipulative skills and strong flexion in the thumb.[23]

It is possible, though, that a more likely scenario may be that the specialized precision gripping hand (equipped with opposable thumb) of Homo habilis preceded walking, with the specialized adaptation of the spine, pelvis, and lower extremities preceding a more advanced hand. And, it is logical that a conservative, highly functional adaptation be followed by a series of more complex ones that complement it. With Homo habilis, an advanced grasping-capable hand was accompanied by facultative bipedalism, possibly implying, assuming a co-opted evolutionary relationship exists, that the latter resulted from the former as obligate bipedalism was yet to follow.[24] Walking may have been a by-product of busy hands and not vice versa.

HACNS1 (also known as Human Accelerated Region 2) is a gene enhancer "that may have contributed to the evolution of the uniquely opposable human thumb, and possibly also modifications in the ankle or foot that allow humans to walk on two legs". Evidence to date shows that of the 110,000 gene enhancer sequences identified in the human genome, HACNS1 has undergone the most change during the human evolution since the chimpanzee-human last common ancestor.[25]

Other animals with opposable digits

Many non-human animals also have some kind of opposable thumb or toe. An animal species is said to have opposable thumbs if the thumb is capable of bending in such a way that it can touch all the other digits on the hand or foot. Most species do not have opposable thumbs. Opposable thumbs are a signature feature of the primate family, and played a large role in the ancient humans' invention and use of tools.

Primates

The thumb is not opposable in all primates — some primates, such as the spider monkey and colobus, are virtually thumbless. The spider monkey compensates for this by using the hairless part of its long, prehensile tail for grabbing objects. In apes and Old World monkeys, the thumbs can be rotated around its axis, but the extensive area of contact between the pulps of the thumb and index finger is a human characteristic.[19]

Darwinius masillae, an Eocene primate fossil often described as a missing link between prosimian and simian, had hands and feet with highly flexible digits featuring opposable thumbs and halluces.[27]

Other placental mammals

Additionally, in many polydactyl cats, both the innermost and outermost ("pinky") toes may become opposable, allowing the cat to perform more complex tasks.

Marsupials

Left: Opposable digits of the Sulawesi bear cuscus forelimb
Right: Opposable thumb on rear foot of an opossum

Dinosaurs

In addition to these, some other dinosaurs may have had partially or completely opposed digits in order to manipulate food and/or grasp prey.

Birds

Amphibians

See also

Notes

  1. clinicalconsiderations at The Anatomy Lesson by Wesley Norman (Georgetown University)
  2. "The Thumb is the Hero". The New York Times. January 11, 1981. Retrieved November 2010. The "fishing rod" a chimp strips of leaves and pokes into a termite nest to bring up a snack is as far as he'll ever get toward orbiting the planets. Check date values in: |access-date= (help)
  3. "Primates FAQ: Do any primates have opposable thumbs?". Wisconsin Regional Primate Research Center. Retrieved November 2010. Check date values in: |access-date= (help)
  4. 1 2 van Nierop et al. 2008, p. 34
  5. Brown et al. 2004
  6. Austin 2005, p. 339
  7. "Muscles of the thumb". Eaton hand. Retrieved April 2010. Check date values in: |access-date= (help)
  8. Platzer 2004, p. 162
  9. 1 2 3 Platzer 2004, p. 168
  10. 1 2 3 4 Platzer 2004, p. 176
  11. Platzer 2004, p. 174
  12. 1 2 "Myth's of Human Genetics: Hitchhiker's Thumb". Retrieved 7 November 2012.
  13. "Thumb, Distal Hyperextensibility of". OMIM. NCBI. Retrieved 5 February 2010.
  14. Slocum & Pratt 1946, McBride 1942, p. 631
  15. Napier 1956, pp. 902–913
  16. Almécija, Moyà-Solà & Alba 2010
  17. Costello & Fragaszy 1988, pp. 235–245
  18. Young 2003, pp. 165–174, Christel, Kitzel & Niemitz 2004, pp. 165–194, Byrne & Byrne 1993, p. 241
  19. 1 2 3 Jones & Lederman 2006, Evolutionary Development and Anatomy of the Hand, p. 12
  20. Brunelli 1999, p. 167
  21. Moyà-Solà, Köhler & Rook 1999, pp. 315–6
  22. Leakey, Tobias & Napier 1964: "[In Homo habilis] the pollex is well developed and fully opposable and the hand is capable not only of a power grip but of, at least, a simple and usually well developed precision grip."
  23. Diogo, R.; Richmond, B. G.; Wood, B. (2012). "Evolution and homologies of primate and modern human hand and forearm muscles, with notes on thumb movements and tool use". Journal of Human Evolution. 63 (1): 64–78. doi:10.1016/j.jhevol.2012.04.001. PMID 22640954.
  24. Harcourt-Smith & Aiello 2004
  25. "HACNS1: Gene enhancer in evolution of human opposable thumb". Science Codex. September 4, 2008. Retrieved December 2009. Check date values in: |access-date= (help)
  26. Ankel-Simons 2007, p. 345
  27. Franzen et al. 2009, pp. 15–18
  28. "The Panda's Thumb". Athro. 2000. Retrieved November 2010. Check date values in: |access-date= (help)
  29. Ellerman 1941, p. 2
  30. Grzimek, Bernhard (2003). Hutchins, Michael; Kleiman, Devra G.; Geist, Valerius; et al., eds. Grzimek's Animal Life Encyclopedia, Vol 16, Mammals V (2nd ed.). Farmington Hills, MI: Gale Group. p. 293. ISBN 0-7876-7750-7.
  31. Nowak 1999, p. 89
  32. McDade 2003, vol 13, p. 44
  33. McDade 2003, vol 12, p. 250
  34. McDade 2003, vol 12, p. 274
  35. "Troodon". Prehistoric Wildlife. Retrieved August 2012. Check date values in: |access-date= (help)
  36. Senter 2006
  37. de Klerk et al. 2000, p. 327. The left manus shows that the flexed digit I had the potential to partially oppose digits II and III.
  38. Bertoluci, Jaime (18 December 2002). "Phyllomedusa". Journal of Herpetology. 1 (2): 93. doi:10.11606/issn.2316-9079.v1i2p93-95.
