Project Sabre II

F-7S Sabre II
A schematics of F-7P of the PAF.
Role Multi-role combat aircraft
Manufacturer Pakistan Aeronautical Complex
Designer Aeronautical Complex
Introduction 1987
Status Cancelled
Primary user Pakistan Air Force (PAF)
Developed from Chengdu F-7M
External images
Models of the Sabre II, in PAF markings, and the Chengdu F-7 published in September 1987.[1]
The F-7 Sabre II and the Super 7.

Project Sabre II was the Pakistan Air Force's program to develop a feasible and low-cost multirole combat jet based on an existing design - the Chengdu F-7 Skybolt, a Chinese variant of the MiG–21FL.[2][3][4] The Pakistani Air Force (PAF) initiated Project Sabre II in 1987, hiring the American aerospace firm Grumman, to provide crucial expertise to refine the baseline aircraft design along with specialists from the PAF and the Chinese People's Liberation Army Air Force (PLAAF).[5]

After studying the Sabre II concept with Grumman, the PAF terminated the program as unfeasible on economic grounds. Grumman withdrew from the project after sanctions were imposed by the United States on the China after Beijing's suppression of the Tiananmen Square student protests in 1989.[6][7] A embargo on military aid to Pakistan imposed by the United States further hampered the Sabre II development effort in the 1990s.[8] In 1995, Pakistan and China began a collaboration which led to the successful JF-17 Thunder program.[4][5][9]

Program overview

Origins

A Pakistani Chengdu F-7PG.

In 1982, the Indian Air Force (IAF) procured the MiG-29 Fulcrum from the Soviet Union to modernize its fighter program. As a result, the Pakistan Air Force (PAF) began looking for new technology to replace its aging fighters. By 1984, the PAF's F-7P (Chengdu F-7) fighters were equipped with Western electronic systems. The PAF began developing and manufacturing an improved version of the F-7M to replace its large fleet of F-6S fighters.[2][3][4]

The Pakistan Air Force started looking for a new fighter to replace their large fleet of Shenyang F-6 fighters,[10] as they approached the end of their service lives in the late 1980s.[11] After showing interest in the F-7M, the Air HQ of the PAF initiated Project Sabre–II to the develop a low-cost multirole fighter jet on the model of the F-7M.[10]

Design feasibility

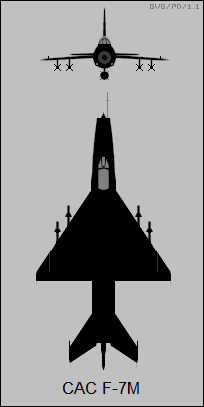

A schematics of PAF's F-7M, of which its design was studied.

In January 1987, the PAF commissioned New York-based Grumman Aerospace to conduct studies and assess the feasibility of the Sabre II design concept with Pakistani specialists and the Chinese Chengdu Aircraft corporation. After five to seven months, the group concluded that the financial risks caused by very high project costs, and the availability of more cost-effective options outweighed the potential benefits from technology transfer from the US to the Pakistan Aeronautical Complex, increasing its experience and technical knowledge.[12]

Grumman, the PAF and the Chinese People's Liberation Army Air Force (PLAAF) created the Sabre II concept by radically upgrading the F-7M.[13] Changes to the F-7M to create the Sabre II included upgrades to its avionics suite, radar system and engine, and a redesigned forward fuselage. The PAF stated that the Sabre II would replace ~150 F-6 in PAF's combat service. A picture showed that the F-7's nose inlet had been replaced with a solid nose radome and a new pair of air inlets were mounted on the sides of the fuselage under the cockpit.[14]

Under Project Sabre II and the Chinese Super-7 project, the F-7 airframe was redesigned with angled air intakes on the sides of the fuselage so a solid radome nose could house radar and other avionics from Northrop's F-20 "Tigershark" fighter. The Chinese WP-7 turbojet engine was to be replaced with a modern turbofan engine, either the GE F404 or PW1120, to improve performance. The resulting aircraft, designated F-7M Sabre-II,[15] would have looked much like the Guizhou JL-9 (or FTC-2000) jet trainer / fighter aircraft.

Pratt & Whitney's PW1216, an afterburning derivative of the J52-P-409 turbojet producing 16,000 pounds-force (71 kN) of thrust, was also proposed as the Sabre II's engine. Its afterburner was designed in China.[16][17] Fitting the APG-66 radar was also planned.[18]

U.S. objections and termination

As the USSR's ending of its involvement in Afghanistan, United States interest in Pakistan lessened. The PAF terminated the Sabre II project after Grumman's warning that it was financially risky and less feasible than other options. Worsening of the US–Chinese relations after Beijing's suppression of the Tiananmen Square student protests also hurt the project, as U.S. sanctions prevented transfer of American technology to China. Grumman Aerospace withdrew from the project shortly thereafter.

At the same time, the US Congress imposed an embargo on economic and military to Pakistan when Congressional leaders became aware of Pakistan's atomic bomb program. A panic ensued among Pakistan's military as Pakistan's atomic bomb program impacted the Super-7 project. The US government tolerated Pakistan's atomic bomb program during the 1980s due to a desire for Pakistan's cooperation in defeating the Soviets in the Afghan Soviet war. Once the Soviet forces retreated, Pakistani cooperation was no longer required and military and economic sanctions were imposed on Pakistan under the Pressler amendment in 1990. This prevented F-16 aircraft already paid for by the PAF during the Afghan war from being delivered. Efforts by the PAF to find a replacement failed (see Pakistan Air Force 1990–2001, the lost decade).

Evolved into JF-17

The Sabre-II evolved into the successful development of the JF-17 Thunder, in 2003.

The PAF decided on a much less expensive solution for replacement of the F-6, the F-7P Skybolt, an upgraded version of the F-7M Airguard.[19] The F-7P fleet was to be supported by a fleet of over 100 advanced F–16s from the United States, 40 of which had been delivered during the 1980s.[19] The PAF launched a secretive project, ROSE, to procure as many second-hand Dassault Mirages from various countries as possible and upgrade their electronic systems. In March 1990 it was reported that after being rejected by the PAF, Sabre II had been superseded by the Super 7 and China was considering continuing its development.[3] The American arms embargo hsd forced the PAF to come up with innovative solutions to keep all its combat infrastructure operational.[19]

The PAF hired Russia's Mikoyan Group as consultants, and design studies for the project began at the Pakistan Aeronautical Complex.[19] In 1995, PAF decided to resume the program and quickly reached out to China. Memoranda of Understanding were reached between Pakistan and China towards developing new aircraft to fill the role of the Sabre II.[12] This led to the successful development of the JF-17 Thunder, introduced in 2003.[5][9]


References

  1. ↑ Flight International magazine, 19 September 1987, page 11. Link to Flight International archives: http://www.flightglobal.com/pdfarchive/view/1987/1987%20-%201745.html?search=grumman%20sabre%20II.
  2. 1 2 "Indian MiG upgrade proposed", URL: http://www.flightglobal.com/pdfarchive/view/1988/1988%20-%203361.html?search=Sabre%20II
  3. 1 2 3 "Pakistan Considers new Fighter Plan", Flight International magazine, published 14–20 March 1990, URL: http://www.flightglobal.com/pdfarchive/view/1990/1990%20-%200672.html?search=Sabre%20II Retrieved: 18 October 2009
  4. 1 2 3 Global Security. "Global Security". globalsecurity.org. Global Security. Retrieved 26 November 2014.
  5. 1 2 3 Xiao, Ming. "JF-17 Thunder". fighter-aircraft.com. Fighter Aircraft. Retrieved 26 November 2014.
  6. ↑ "Grumman to upgrade Chinese F-7Ms", Flight International magazine, published 26 November 1988, URL: http://www.flightglobal.com/pdfarchive/view/1988/1988%20-%203360.html Retrieved: 15 February 2010
  7. ↑ Afsir, Karim (1998). Indo-Pak relations: viewpoints, 1989-1996. New Delhi, India: Lancers Publishers. ISBN 189782923X. Retrieved 26 November 2014.
  8. ↑ Hamid, Jalal (23 February 2010). "JF-17 Thunder – the First Squadron Enters Pakistan Air Force". Jalal Hamid. Retrieved 26 November 2014.
  9. 1 2 "JF-17 Thunder Program". PAF Falcons. Retrieved 26 November 2014.
  10. 1 2 "Grumman Pursues Pakistan Fighter". FLIGHT INTERNATIONAL, 13 February 1988 (as seen in FlightGlobal Archive site). Reed Business Information. 13 February 1988. p. 17. Retrieved 16 September 2016.
  11. ↑ Alan Warnes "Pakistan's Vision: Bridging The Capabilities Gap" Air Forces Monthly (Magazine issue: July 2004) Page: 33 (can be viewed at URL: http://www.defencetalk.com/pictures/showphoto.php/photo/3207)
  12. 1 2 Warnes, Alan (July 2004), "Pakistan's Vision: Bridging The Capabilities Gap", Air Forces Monthly, p. 33
  13. ↑ "China: J-7 (MiG-21), Flight International magazine, published 19 August 1989, URL: http://www.flightglobal.com/pdfarchive/view/1989/1989%20-%202539.html?search=Sabre%20II Retrieved: 18 October 2009
  14. ↑ "Grumman Reveals Sabre II for Pakistan", Flight International magazine, published 19 September 1987, URL: http://www.flightglobal.com/pdfarchive/view/1987/1987%20-%201745.html?search=Sabre%20II Retrieved: 18 October 2009
  15. ↑ Arnett, Eric H. (1997), Military capacity and the risk of war: China, India, Pakistan, and Iran, Oxford University Press, ISBN 978-0-19-829281-4, p. 169
  16. ↑ "Pratt & Whitney's PW1216 turbojet..." http://www.flightglobal.com/pdfarchive/view/1987/1987%20-%201876.html?search=Sabre%20II
  17. ↑ "1987 | 1859 | Flight Archive". Flightglobal.com. 26 September 1987. Retrieved 2010-03-21.
  18. ↑ "1991 | 2171 | Flight Archive". Flightglobal.com. Retrieved 2010-03-21.
  19. 1 2 3 4 Sheikh, PAF, Air Marshal Rashid (2001). The story of the Pakistan Air Force, 1988-1998 : a battle against odds. Pakistan: Shaheen Foundation. p. 432. ISBN 978-9698553005.
