Semi-submersible

For semi-submersible boats used for drug smuggling, see Narco-submarine.
Deepsea Delta semi-submersible drilling rig in the North Sea
Comparison of deepwater semi-submersible and drillship

A semi-submersible (semisubmerged ship) is a specialised marine vessel used in a number of specific offshore roles such as offshore drilling rigs, safety vessels, oil production platforms, and heavy lift cranes. They are designed with good stability and seakeeping characteristics. Other terms include semisubmersible, semi-sub, or simply semi.

Characteristics

Offshore drilling in water depth greater than around 520 meters requires that operations be carried out from a floating vessel, as fixed structures are not practical. Initially in the early 1950s monohull ships such as CUSS I were used, but these were found to have significant heave, pitch and yaw motions in large waves, and the industry needed more stable drilling platforms.

A semi-submersible obtains most of its buoyancy from ballasted, watertight pontoons located below the ocean surface and wave action. Structural columns connect the pontoons and operating deck.[1] The operating deck can be located high above the sea level owing to the good stability of the design, and therefore is kept well away from the waves.

With its hull structure submerged at a deep draft, the semi-submersible is less affected by wave loadings than a normal ship. With a small water-plane area, however, the semi-submersible is sensitive to load changes, and therefore must be carefully trimmed to maintain stability. Unlike a submersible, a semi-submersible vessel is not supported by resting on the seabed.

Semi-submersible vessels are able to transform from a deep to a shallow draft by deballasting (removing ballast water from the hull), thereby becoming surface vessels. Usually they are moved from location to location in this configuration. The heavy lift vessels use this capability to submerge the majority of their structure, locate beneath another floating vessel, and then deballast to pick up the other vessel as a cargo.

Early history

Blue Water Rig No. 1

The semi-submersible design was first developed for offshore drilling activities. Bruce Collipp of Shell is regarded as the inventor.[2] But Edward Robert Armstrong may have paved the way with his idea of "seadrome" landing strips for airplanes in the late 1920s, since his idea involved the same use of columns on ballast tanks below the surface and anchored to the ocean floor by steel cables.[3]

When oil drilling moved into offshore waters, fixed platform rigs and submersible rigs were built, but were limited to shallow waters. When demands for drilling equipment was needed in water depths greater than 100 feet (30 m) in the Gulf of Mexico, the first jackup rigs were built.

The first semisubmersible arrived by accident in 1961. Blue Water Drilling Company owned and operated the four column submersible drilling rig Blue Water Rig No.1 in the Gulf of Mexico for Shell Oil Company. As the pontoons were not sufficiently buoyant to support the weight of the rig and its consumables, it was towed between locations at a draught midway between the top of the pontoons and the underside of the deck. It was observed that the motions at this draught were very small, and Blue Water Drilling and Shell jointly decided that the rig could be operated in the floating mode.[1]

The first purpose built drilling semi-submersible Ocean Driller was launched in 1963.[4] Since then, many semi-submersibles have been purpose-designed for the drilling industry mobile offshore fleet.

The industry quickly accepted the semi-submersible concept and the fleet increased rapidly to 30 units by 1972.

Classification

Drilling rig construction has historically occurred in boom periods and therefore "batches" of drilling rigs have been built. Offshore drilling rigs have been loosely classified in nominal "generations" depending upon the year built and water depth capability as follows:

Generation Water depth Dates
Firstabout 600 ft200 m Early 1960s
Secondabout 1000 ft300 m 1969–1974
Thirdabout 1500 ft500 m Early 1980s
Fourthabout 3000 ft1000 m 1990s
Fifthabout 7500 ft2500 m 1998–2004
Sixthabout 10000 ft3000 m 2005–2010

Applications

Mobile offshore drilling units (MODU)

Semi-submersible drilling rig on MS3 semi-submersible heavy-lift ship
Saipem Scarabeo 7 semi-submersible drilling rig docked in Cape Town

Semi-submersible rigs make stable platforms for drilling for offshore oil and gas. They can be towed into position by a tugboat and anchored, or moved by and kept in position by their own azimuth thrusters with dynamic positioning.

The IMO MODU Code is an accredited design and operational guideline for mobile offshore drilling units of the semi-submersible type.[5]

Semi-submersible crane vessels (SSCV)

Thialf in Norwegian fjord with Fulmar single anchor leg mooring (SALM) buoy.

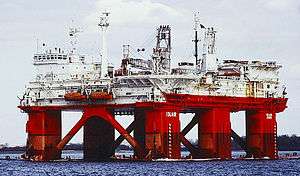

Iolair on Elbe river, 1990
The Brazilian Petrobras P-51 semi-submersible oil platform

The advantages of the semi-submersible vessel stability were soon recognized for offshore construction when in 1978 Heerema Marine Contractors constructed the two sister crane vessels called Balder and Hermod. These semi-submersible crane vessels (SSCV) consist of two lower hulls (pontoons), three columns on each pontoon and an upper hull. Shortly after J. Ray McDermott and Saipem also introduced SSCVs, resulting in two new enormous vessels DB-102 (now Thialf) and Saipem 7000, capable of lifting respectively 14,200 and 14,000 tons.

During transit an SSCV is de-ballasted to a draught where only part of the lower hull is submerged. During lifting operations, the vessel is ballasted down. This way, the lower hull is well submerged. This reduces the effect of waves and swell. High stability is obtained by placing the columns far apart. The high stability allows them to lift extremely high loads safely.

Offshore support vessels (OSV)

Semi-submersibles are particularly suited to a number of offshore support vessel roles because of their good stability, large deck areas, and variable deck load (VDL). Some of the most prominent vessels are;

Offshore production platforms

When oil fields were first developed in offshore locations, drilling semi-submersibles were converted for use as combined drilling and production platforms. These vessels offered very stable and cost effective platforms. The first semi-submersible floating production platform was the Argyll FPF converted from the Transworld 58 drilling semi-submersible in 1975 for the Hamilton Brothers North Sea Argyll oil field.

As the oil industry progressed into deeper water and harsh environments, purpose-built production semi-submersible platforms were designed. The first purpose-built semi-submersible production platform was for the Balmoral field, UK North Sea in 1986.[9]

A summary of offshore semi-submersible oil production platforms is given in the following table derived from industry data.[10][11][12][13][14][15]

Vessel Field Region Depth (m) Displacement (Te) Operator Startup Hull designer Hull builder Notes
Argyll FPU Argyll Oil Field UK North Sea 150 34,000 Agip 1975 Converted from Transocean 58 MODU. First semi-submersible production platform.[16]
Buchan A Buchan oil field UK North Sea 160 18,995 Talisman 1981 CFEM CFEM Le Havre - converted Aker Offshore Stornoway Converted from Drillmaster MODU for BP
P-09 Corvina Oil Field Brazil 230 22,896 Petrobras 1983 Aker Mitsui Conversion Aker H-3e design drilling rig
P-15 Pirauna Brazil 243 21,616 Petrobras 1983 Mitsubishi Heavy Industries Mitsubishi Heavy Industries Conversion Mitsubishi MD-503 design
P-12 Linguado / Badejo Oil Field Brazil 100 22,896 Petrobras 1984 Aker Mitsui, Japan Aker H-3e design
P-21 Badejo / Salema Oil Fields Brazil 112 10,765 Petrobras 1984 Earl & Wright Montreal Engineering, Rio de Janeiro Conversion of Sedco Staflo drilling rig
Deepsea Pioneer FPU Argyll & Duncan Oil Fields UK North Sea 150 34,000 Agip 1984 Converted from Deepsea Saga drilling rig[17]
P-22 Morela Brazil 114 17,440 Petrobras 1986 Frede & Goldman Montreal Engineering Conversion of drilling rig Sedco 135F
Balmoral FPV Balmoral (+4 satellites) Oil Field UK North Sea 150 30,983 Premier Oil 1986 GVA Götaverken, Sweden First purpose built production semi-submersible.
P-07 Bicudo Oil Field Brazil 207 20,493 Petrobras 1988 Aker Raumer-Repola or Ishibras Shipyard, Rio ? Converted from Aker H-3 drilling rig Bendoran
Veslefrikk B Veslefrikk Oil Field Norwegian Sea 175 43,305 Statoil 1989 Aker Daewoo, Korea Converted from West Vision drilling semi. First floating production facility in Norway.
AH001 Ivan Hoe Rob Roy Oil Field UK North Sea 140 26,639 Amerada Hess 1989 Brown & Root Highland Fabricators, Nigg Converted from Sedco Philips SS First OSV/Safety Vessel
P-20 Marlim Brazil 625 25,983 Petrobras 1992 GVA Astileros, Spain GVA4000 design. Converted from Russian built Illiad drilling semi.
P-08 Marimba Oil Field Brazil 423 20,990 Petrobras 1993 Petrobras Tangenge, Niteroi, Brazil Converted drilling rig Songa Star / Belford Dolphin
P-13 Bijupira / Salema Oil Field Brazil 625 22,243 Queriz Galvao Perfuracoes 1993 CFEM UIE, Clydesbank ? Conversion
P-14 Coral / Esrela / Caravela Oil Fields Brazil 195 22,243 Petrobras 1993 CFEM CFEM, Brazil ? Conversion
P-18 Marlim Brazil 910 36,100 Petrobras 1994 GVA Tenege / FELS GVA4500 design
Troll B FPU Troll gas field Norwegian Sea 339 188,968 Statoil 1995 Kvaerner/Doris Kvaerner Rosenberg Concrete construction.
Nan Hai Tiao Zhan Luihua South China Sea 300 0,000 CNOOC 1995 Reading & Bates Keppel FELS Converted Sedco700 drilling rig West Stadrill for Amoco
P-25 Albacora II Oil Field Brazil 252 25,983 Petrobras 1996 CENPES Ultratec Conversion of Zapat-4000 drilling rig
P-27 Voador Brazil 533 41,659 Petrobras 1996 FELS / Obdebrecht Levingston Conversion of Penrod drilling rig Pardill 71
Innovator Marlim Gulf of Mexico 914 0,000 ATP 1996 GVA
Tahara PY-3 Indian Ocean 339 55,000 Hardy oil and gas 1997 Earl & Wright Hup Seng Engineering Conversion Sedco-135 design
Njord A Njord Oil Field Norwegian Sea 330 45,077 Statoil 1997 Aker Aker Verdal Originally built for Norsk Hydro Design based on P-45 ?
P-19 Marlim Brazil 770 33,400 Petrobras 1997 IVI/Sadevegesa consortium Hitachi Zosen Converted from Enhanced pacesetter drilling rig.
Janice A Janice Oil Field UK North Sea 80 0,000 Anadarko 1999 Aker McNulty Converted from Aker H3.2 drilling vessel
Visund Visund Norwegian Sea 335 52,600 Statoil 1999 GVA Umoe Mandal GVA8000 design
Troll C FPU Troll gas field Norwegian Sea 339 54,377 Statoil 1999 GVA HHI, S. Korea GVA 8000 design
P-26 Marlim Brazil 515 27,656 Petrobras 2000 Astilleros Astilleros, Spain Conversion
Åsgard B Åsgard Norwegian Sea 320 84,848 Statoil 2000 GVA Daewoo, S. Korea
P-36 Roncador Brazil Campos Basin 1,360 0,000 Petrobras 2000 SBM Atlantia Davie Shipbuilding, Canada Converted from drilling rig Spirit of Columbus and sank in 2001
Snorre B FDPU Snorre Oil Field Norwegian Sea 350 56,600 Statoil 2001 Aker Dragados Originally built for Saga
P-51 Marlim Sul Oil Field Brazil Campos Basin 1,255 80,114 Petrobras 2001 Aker Keppel FELS Aker DDS design
SS-11 Coral Brazil 145 0,000 Petrobras 2003 Breit Bethlehem Steel Conversion
Nakika Kepler, Ariel, Fourier, Herschell & E. Anstey Gulf of Mexico 1936 64,000 BP 2003 ABB Lumus HHI, S. Korea Constructed for Shell, but operated by BP
P-40 Marlim Sul Brazil 1,080 0,000 Petrobras 2004 PROJEMAR Jurong Conversion of DB-100 design drilling rig
Kristin FPU Kristin Norwegian Sea 320 56,600 Statoil 2005 GVA Samsung, S. Korea
Atlantis PQ Atlantis Oil Field Gulf of Mexico 2,156 89,000 BP 2006 GVA DSME, S. Korea
ATP Innovator Gomez Oil Field Gulf of Mexico 914 46,160 ATP 2006 Levingston Levingston Converted from Rowan Midland semi-sub
Independence Hub 10 fields Gulf of Mexico 2,015 46,160 Anadarko 2007 SBM Atlantia Jurong Shipyard
P-52 Roncador Brazil 1,795 80,201 Petrobras 2007 Aker Keppel FELS Aker DDS design
Thunder Horse PDQ Thunder Horse Oil Field Gulf of Mexico 1,849 130,000 BP 2008 GVA DSME, S. Korea GVA40000 design, largest semi-submersible platform
Blind Faith Blind Faith Gulf of Mexico 1,980 40,000 ChevronTexaco 2008 Aker Aker Verdal Aker DDS design
Northern Producer FPF was at Galley Oil Field now at Don Oil Field UK North Sea 350 0,000 Petrofac 2009 Granherne McNulty, Newcastle Re-use of Emerald Producer FPU, originally converted from Aker H-3 vessel Alibaba in 1989.
Thunder Hawk Thunder Hawk Gulf of Mexico 1740 42,000 Murphy 2009 SBM Atlantia Dyna-Mac Engineering Services Pte Ltd
Gjøa Gjøa Oil Field Norwegian Sea 360 58,400 Statoil 2010 Aker Samsung, S. Korea To be operated by Gas de France
P-56 Marlim Sul Brazil 1,700 50,000 Petrobras 2010 Aker Keppel FELS Copy of P-51 platform. Aker DDS design built in Brazil.
Gumusut-Kakap Pisigan, Malilai, Ubah Malaysia 1,220 40,000 Sabah Shell Petroleum Company 2012 MMHE, Malaysia MMHE, Malaysia and MMHE-ATB JointVenture First production semi-submersible in Malaysia
P-55 Roncador Brazil 1,707 105,000 Petrobras 2012 Petrobras Atlantico Consortium Built in Brazil.
