Short Type 827

Short 827 and 830
Short Type 827 (8237), at Lee-on-Solent, 1918
Role	Reconnaissance
National origin	United Kingdom
Manufacturer	Short Brothers
First flight	1914
Primary user	Royal Naval Air Service
Number built	108 (Type 827) 18 (Type 830)

The Short Type 827 was a 1910s British two-seat reconnaissance floatplane. It was also known as the Short Admiralty Type 827.

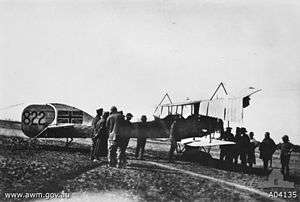

The first production Short Type 827 with members of the Australian Flying Corps

Design and development

The Short Type 827 was a two-bay biplane with unswept equal span wings, a slightly smaller development of the Short Type 166. It had a box section fuselage mounted on the lower wing. It had twin floats under the forward fuselage, plus small floats fitted at the wingtips and tail. It was powered by a nose-mounted 155 hp (116 kW) Sunbeam Nubian engine, with a two-bladed tractor propeller. The crew of two sat in open cockpits in tandem.

The aircraft was built by Short Brothers (36 aircraft,^[1]) and also produced by different contractors around the United Kingdom, i.e. Brush Electrical (20), Parnall (20), Fairey (12) and Sunbeam (20).^[2]

The Short Type 830 was a variant powered by a 135 hp (101 kW) Salmson water-cooled radial engine.

Variants

Type 827

Production aircraft with a Sunbeam Nubian engine, 108 built.

Type 830

Variant powered by a 135 hp (100 kW) Salmson^[3] 18 built.^[1]

S.301

A batch of ten tractor seaplanes officially listed as Type 830s with a 140 hp (104 kW) Salmson-Canton-Unné engine are sometimes described as Short S.301s after the sequence/construction number of the first aircraft. It was a hybrid design, with the wings and fuselage of the Short Type 166 and the straight-edged ailerons and forward observer's position of the Type 830.^[4]

Operators

 Belgium

• Belgian Air Force

 United Kingdom

• Royal Naval Air Service

Specifications (Type 827)

Data from Orbis 1985^[5]

General characteristics

• Crew: 2 (pilot, observer)
• Length: 35 ft 3 in (10.74 m)
• Wingspan: 53 ft 11 in (16.43 m)
• Height: 13 ft 6 in (4.11 m)
• Wing area: 506 ft² (47.01 m²)
• Empty weight: 2,700 lb (1,225 kg)
• Gross weight: 3,400 lb (1,542 kg)
• Powerplant: 1 × Sunbeam Nubian V-engine, 150 hp (112 kW)

Performance

• Maximum speed: 62 mph (100 km/h)
• Endurance: 3 hours  30 min

Armament

• 1 x .303 Lewis Gun on flexible mount in rear cockpit
• Provision for light bombs on underwing racks

See also

• Short Folder

Related development

• Short Type 166

Related lists

• List of aircraft of the Royal Naval Air Service
• List of seaplanes and flying boats

References

Notes

1. Barnes & James, p. 527
2. Barnes & James, p. 541
3. Barnes & James, p.97
4. Barnes & James, p.108
5. Orbis 1985, page 2914

Bibliography

• Barnes C.H. & James D.N (1989). Shorts Aircraft since 1900. London: Putnam. p. 560. ISBN 0-85177-819-4.
• Bruce, J.M (1956). "The Short Seaplanes: Historic Military Aircraft No 14: Part II". Flight. No. 21 December 1956. pp. 965–968.
• Bruce, J.M (1957). "The Short Seaplanes: Historic Military Aircraft No 14: Part IV". Flight. No. 4 January 1957. pp. 23–24.
• Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions. p. 801.
• The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing.
