USRA Heavy Santa Fe

USRA Heavy Santa Fe

Type and origin Power type Steam Builder American Locomotive Company, Baldwin Locomotive Works

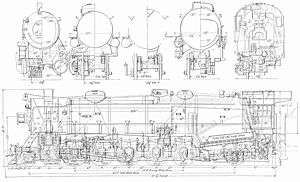

Specifications Configuration 2-10-2 UIC class 1′E1′ h2 Gauge 4 ft 8 ^1⁄2 in (1,435 mm) standard gauge Leading dia. 33 in (838 mm) Driver dia. 63 in (1,600 mm) Trailing dia. 43 in (1,092 mm) Wheelbase 42 ft 2 in (12.85 m) Length 55 ft 4 in (16.87 m) without tender Width 10 ft 8 in (3.25 m) Height 15 ft 9 in (4.80 m) Adhesive weight 293,000 lb (133,000 kilograms; 133 metric tons) Loco weight 380,000 lb (170,000 kilograms; 170 metric tons) Total weight 586,000 lb (266,000 kilograms; 266 metric tons) Fuel type Soft coal (bituminous) Firebox:  • Firegrate area 82.2 sq ft (7.64 m^2) Boiler pressure 190 lbf/in^2 (1.31 MPa) Heating surface 5,156 sq ft (479.0 m^2)  • Tubes 3,258 sq ft (302.7 m^2)  • Flues 1,469 sq ft (136.5 m^2)  • Firebox 429 sq ft (39.9 m^2) Superheater: ​  • Heating area 1,230 sq ft (114.3 m^2) Cylinders Two Cylinder size 30 in × 32 in (762 mm × 813 mm) Valve gear Southern (see drawing)

Performance figures Tractive effort 74,000 lbf (329.2 kN) Factor of adh. 3.96

The USRA Heavy Santa Fe was a USRA standard class of steam locomotive designed under the control of the United States Railroad Administration, the nationalized railroad system in the United States during World War I. These locomotives were of 2-10-2 wheel arrangement in the Whyte notation, or 1′E1′ in UIC classification; this arrangement was commonly named "Santa Fe" in the United States. At the time, the Santa Fe was the largest non-articulated type in common use, primarily in slow drag freight duty in ore or coal service.

A total of 175 of these locomotives were constructed under the auspices of the USRA. They went to the following railroads:

Table of original USRA allocation ^[1]

Railroad	Quantity	Class	Road numbers	Notes
Bessemer and Lake Erie Railroad	5	D2A	521–525	[2]
Chicago, Burlington and Quincy Railroad	10	M-3	6200–6209	At times leased to the Colorado and Southern Railway[3]
Erie Railroad	25	R-3	4200–4224	[4]
Colorado and Southern Railway	5	E-5B	905–909	[5]
Pennsylvania Railroad	130	N2s	Random between 7036 and 9859	[6]
Total	175

The Pennsylvania Railroad locomotives were later refitted with the Pennsy's trademark Belpaire fireboxes. None of the originals built under USRA auspices or any of the subsequent copies were preserved.

References

1. "USRA Locomotives". Steamlocomotive.com. Retrieved 2009-02-19.
2. Drury pp.51–52
3. Drury pp. 101, 106
4. Drury pp. 174, 180
5. Drury pp. 136, 138
6. Drury p.328

• "The Standard Heavy Santa Fe Type Locomotive". Railway Age. 66 (7): pp. 389–392. February 14, 1919 – via archive.org.
