Upholder/Victoria-class submarine

HMCS Victoria
Class overview
Name:
  • Upholder class (UK)
  • Victoria class (Canada)
Builders: VSEL & Cammell Laird
Operators:
Preceded by: Oberon class
In commission:
  • RN – 2 June 1990 to October 1994
  • CFMC/RCN - December 2000 to present
Planned: 12
Completed: 4
Active: 4
General characteristics
Type: Submarine
Displacement: 2,455 tonnes (2,416 long tons)
Length: 70.26 metres (230.5 ft)
Beam: 7.2 metres (24 ft)
Draught: 7.6 metres (25 ft)
Propulsion:
Speed:
  • 12 knots (22 km/h; 14 mph) (surface)
  • 20 knots (37 km/h; 23 mph)+ (submerged)
Range: 8,000 nmi (15,000 km; 9,200 mi)
Complement: 48
Sensors and
processing systems:
  • Sonar: Type 2040 active/passive bow, Type 2041 micropuffs, Type 2007 flank, Type 2046/CANTASS MOD towed array, Type 2019 active intercept
  • Fire Control: Lockheed-Martin Librascope SFCS Mk 1 Mod C
  • Radar: Kelvin Hughes Type 1007
Armament: 6 x 21-inch (533 mm) torpedo tubes (18 Mark 48 torpedoes)

The Upholder/Victoria-class submarines, also known as the Type 2400 (due to their displacement of 2,400 tonnes), are diesel-electric fleet submarines designed in the UK in the late 1970s to supplement the Royal Navy's nuclear submarine force. They were decommissioned with the end of the Cold War after a short length of service in the Royal Navy. In 1998, Canada purchased the submarines and a suite of trainers from the Royal Navy to replace the decommissioned Oberon class of submarines. Their service lives have been marred with incidents that have kept them nonoperational.

Design and development

A cross-section of an Upholder-class submarine

In the late 1970s the United Kingdom Ministry of Defence (MoD) proposed a diesel-electric submarine design to replace the Oberon class. The new submarine class was intended to provide a more cost-effective alternative for training and in coastal defence.[1] The announcement for the new design took place in September 1979.[2] Five designs were put forward, with the MoD selecting the 1,960-ton design. However, the need for export potential upped the displacement limit to 2,400 tons to allow for flexibility in construction if the need for alternative machinery and systems arose.[1]

The Vickers Shipbuilding & Engineering Ltd. (VSEL) Type 2400 diesel-electric patrol submarine design was selected. The design displaces between 2,168 - 2,220 tons surfaced and 2,400 - 2,455 tons submerged.[2][3][4] The submarines are 230 feet 7 inches (70.28 m) long overall with a beam of 25 feet (7.6 m) and a draught of 17 feet 8 inches (5.38 m).[2][4][note 1] The submarines had a complement between 44 and 47 with the Royal Navy.[2][3]

The submarines have a single-skinned, teardrop-shaped hull constructed from NQ1 high tensile steel. The hull is fitted with elastomeric acoustic tiles to reduce acoustic signature. The class has a reported dive depth of over 650 feet (200 m).[4]

Machinery

The submarines are powered by a one shaft diesel-electric system. They are equipped with two Paxman Valenta 1600 RPS SZ diesel engines each driving a 1.4-megawatt (1,900 hp) GEC electric alternator with two 120-cell chloride batteries.[2][5] The batteries have a 90-hour endurance at 3 knots (5.6 km/h; 3.5 mph).[5] The ship is propelled by a 4.028-megawatt (5,402 hp) GEC dual armature electric motor turning a seven-blade fixed pitch propeller.[5] They have a 200-ton diesel capacity. This gives the subs a maximum speed of 12 knots (22 km/h; 14 mph) on the surface and 20 knots (37 km/h; 23 mph) submerged. They have a range of 8,000 nautical miles (15,000 km; 9,200 mi) at 8 knots (15 km/h; 9.2 mph) and 10,000 nautical miles (19,000 km; 12,000 mi) at snorting depth.[2][3]

Armament

The class is equipped with six 21-inch (533 mm) torpedo tubes in the bow.[2][3] In British service, the submarines were supplied with up to 18 Marconi Mk 24 Tigerfish Mod 2 torpedoes and capable of using UGM-84 Sub-Harpoon missiles.[2][3] They could also be adapted for use as a minelayer.[3] The DCC Action Information Organisation and Fire Control System (AIS/FC), developed from the DCA/DCB systems in service at that time aboard Royal Navy nuclear-powered submarines, was based on two Ferranti FM1600E computers with a digital data bus linked to three dual-purpose consoles. Up to 35 targets could be tracked, and automatic guidance could be provided for four torpedoes against four separate targets.

During the refit for Canadian service, the Sub-Harpoon and mine capabilities were removed and the submarines were equipped with the Lockheed Martin Librascope Submarine fire-control system (SFCS) to meet the operational requirements of the Canadian Navy. Components from the fire control system of the Oberon-class submarines were installed.[6] This gave the submarines the ability to fire the Gould Mk 48 Mod 4 torpedo.[4] The torpedoes, operating at 40 knots (74 km/h) speed, are deployed against targets over a range of 50 kilometres (31 mi). The torpedo range is 38 kilometres (24 mi) at speeds up to 55 knots (102 km/h). The torpedoes use active and passive homing to approach the designated target. In 2014, the Government of Canada purchased 12 upgrade kits that will allow the submarines to fire the Mk 48 Mod 7AT torpedoes.[7]

Sensors and countermeasures

As built, the Upholder class was equipped with the Kelvin Hughes Type 1007 I-band radar for navigational purposes. The submarines were fitted with the Type 2040 Thompson Sintra ARGONAUTE hull mounted sonar, installed in the bow and Type 2026 GEC Avionics passive towed array. The submarines had the Type 2019 Thompson Sintra PARIS passive sonar for active and intercept purposes. They also had the Type 2041 passive ranging sonar and the Type 2004 expendable bathythermograph. The class was fitted with Type 2008 underwater telephone.[5] The Type 2040 sonar was intended to be upgraded to Type 2075; however, that upgrade was cancelled in 1991.[2][4]

These systems were later upgraded with the installation of the BAE Type 2007 array and the Type 2046 towed array.[2][4] The Canadian Towed Array Sonar (CANTASS) has been integrated into the towed sonar suite.[4]

The Upholder-class submarines were equipped with the CK035 electro-optical search periscope and the CH085 optronic attack periscope, originally supplied by Pilkington Optronics.[4][5] After the Canadian refit, the submarines were equipped with Canadian communication equipment and electronic support measures (ESM). This included two SSE decoy launchers and the AR 900 ESM.[4]

Submarines in class

Upholder /Victoria-class submarines[note 2]
British name Pennant no. Builder Laid down Launched British service Canadian name Hull no. Canadian service
Commissioned Paid off Commissioned Status
Upholder[8] S 40 VSEL, Barrow-in-Furness November 1983 2 December 1986 9 June 1990 29 April 1994 Chicoutimi SSK 879 3 September 2015 In active service
Unseen[9] S 41 Cammell Laird, Birkenhead 12 August 1987 14 November 1989 20 July 1991 6 April 1994 Victoria SSK 876 2 December 2000 In active service
Ursula[10] S 42 28 August 1987 22 February 1991 8 May 1992 16 June 1994 Corner Brook SSK 878 29 June 2003 In active service
Unicorn[11] S 43 13 March 1989 16 April 1992 25 June 1993 16 October 1994 Windsor SSK 877 4 October 2003 In active service

Construction and Royal Navy service

The plan initially called for twelve submarines to be built. However, formal approval was given in 1981 for the construction of only nine.[2][1] The nine boats were to constructed in three stages, with Stage 1 being the construction of the prototype submarine, Stage 2 being the construction of three more follow-on boats, and Stage 3 being the construction of five boats with updated systems.[1]

The MoD placed the order with VSEL for the Stage 1 boat on 2 November 1983.[1] Upholder's keel was laid down at the VSEL shipyard at Barrow-in-Furness that month and the submarine was launched on 2 December 1986.[2][8] The order for Stage 2 was placed on 2 January 1986 with the contract for the next three boats going to Cammell Laird, a subsidiary of VSEL. The cost for announced for the program was £620 million plus long-lead items.[1]

The second boat, Unseen, was laid down at the Cammell Laird shipyard at Birkenhead on 12 August 1987 and launched on 14 November 1989.[9] Ursula was laid down on 25 August 1987 and launched on 22 February 1991[10] and Unicorn was laid down on 13 March 1989 and launched on 16 April 1992.[11]

Upholder was completed on 9 June 1990, followed by Unseen on 20 July 1991, Ursula on 8 May 1992 and Unicorn on 25 June 1993. In their short period in service, the class operated mostly in the Atlantic Ocean, the Mediterranean and UK waters. Initially they were unable to fire torpedoes and the first three were refitted in 1992 and 1993 to have this fixed at a cost of £9 million. They were operating from HMS Dolphin (at Gosport) but with only four submarines the base was deemed uneconomic and they transferred to Devonport Naval Base. The exception was Unicorn, which completed a 6-month deployment east of Suez completing operations and exercises in the Mediterranean, the Gulf of Oman and Indian Ocean and in the Persian Gulf.

In 1992, the Defence Review announced the decision by the MoD to direct all further submarine expenditure to nuclear-powered submarines. In 1994, the Royal Navy abandoned the Type 2400 program after the first four submarines and Stage 3 was never ordered.[1] The Upholder class were declared surplus in 1994 and laid up.[2][3] Unseen was paid off on 6 April 1994,[9] followed by Upholder on 29 April[11] and Ursula on 16 June.[10] These three boats were laid up in June 1994.[12] Unicorn was paid off on 16 October 1994 and laid up then.[11][12]

Canadian acquisition

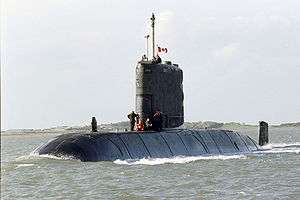

HMCS Windsor leaving Faslane

Following the cancellation of the Canadian nuclear-powered submarine program, the Canadian navy sought to acquire conventionally-powered submarines again.[13] The Canadian National Defence White Paper of 1994 stated the intent to explore the purchase of the Upholder class from the UK.[14] The choice faced opposition and the price of $1 billion that the MoD demanded stalled the decision by the Cabinet of Canada to go ahead with the purchase. In the meantime, the subs were offered to Portugal and Chile. In 1996, another attempt to purchase the subs by Canada was stopped soon after starting.[15] In the meantime, the UK spent millions maintaining the submarines.[13]

In April 1998, the Canadian government announced the potential acquisition of the Upholder class. The published cost was $750 million divided into two parts. $610 million was to be paid for the subs themselves and the remaining $140 million would cover related expenses.[15][16]

On 3 July 1998, the deal was ratified and two contracts were signed simultaneously. The first was an eight year interest-free lease-to-purchase agreement for the four submarines, five training simulators and assorted training and data packages. The lease payments were part of a barter agreement for the continued access by the UK to Canadian Forces bases Wainwright, Suffield, and Goose Bay.[15] The second contract was with VSEL for the refits required for the reactivation of the laid up submarines. This included modifications for Canadian service, new batteries, a training program and all spare parts.[15]

Although the Canadian government touted the $750 million CAD[17] procurement as a bargain, there have been arguments over the quality of the submarines with some suggestions that the purchase price will be at least spent again putting things right. Canadian opposition parties are demanding that the British government fund any further costs, since it is widely believed that the submarines deteriorated while in storage and the Royal Navy was not completely forthcoming on their condition during the sale. Stephen Saunders, editor of Jane's Fighting Ships, argued that "there is not something inherently wrong with the class of submarines."[18]

Trainers

Victoria-class submarines use eight Submarine Command Team Trainers built for the Royal Navy. They were removed from the UK and moved to Canada by CAE, Computing Devices Canada, General Dynamics Canada and Irving Shipbuilding.[19][20] These devices were land base systems using simulators and other training devices. Victoria-class submarines also used a Canadian Submarine Escape Trainer, attached to a real submarine to simulate escape procedures.[21]

Canadian service

Upon acquiring the subs, Maritime Command suggested that the subs would be operational by 2000. This included an 18-month systems check. Each sub would undergo a six-month Canadian Work Period (CWP). During the CWP, Canadian communications and fire control systems were installed.[16] On 6 October, Unseen was accepted by Canada at Barrow-in-Furness and renamed Victoria. The submarine arrived in Canada on 23 October 2000 and was commissioned into Maritime Command on 2 December. She then underwent her CWP.[9]

Unicorn was accepted by Canada and renamed Windsor on 5 July 2001. The sub sailed from Faslane on 8 October, arriving at Halifax, Nova Scotia on 19 October 2001. During her sea trials, Windsor suffered minor flooding while submerged, forcing her early entry into the CWP.[11] Ursula was accepted by Canada and renamed Corner Brook on 21 February 2003. She departed Faslane on 25 February and arrived at Halifax on 25 February. Corner Brook was commissioned at her namesake city on 29 June 2003.[9] On 29 June 2003, following the completion of her CWP, Victoria transferred to the west coast, arriving at Esquimalt, British Columbia on 24 August.[9] Windsor was commissioned into Maritime Command during her CWP on 4 October 2003.[11]

The crew of Onondaga, the last Canadian Oberon, transferred to Upholder, the last of the class to transfer in July 2000.[16] The sub was accepted by Canada on 2 October 2004 at Faslane and renamed Chicoutimi.[8]

Fire

HMCS Chicoutimi aboard the heavy lift vessel Tern

Chicoutimi cleared Faslane on 4 October 2004 on her homeward journey to Canada. Since Faslane was a nuclear submarine base, Chicoutimi was forced to travel on the surface for the first stage of the passage. On 5 October Chicoutimi was passing through a gale with 6-metre (20 ft) seas. During a watch change at 0300 sea water entered the conning tower. The lower hatch prevented the water from entering the sub; however, the drain in the tower failed to operate. When the lower hatch was opened, the water fell into the sub. However, the water was pumped overboard and the incident noted. The drain valves required repair before diving. At 1052 two crew entered the tower to perform repairs. The upper hatch was opened. However, after roughly 25 minutes, another tool was needed from within the sub. When the lower hatch was opened, the submarine was rocked by a large wave, throwing roughly 500 gallons of sea water into Chicoutimi. Electrical explosions and fire erupted soon afterward, spreading quickly. In order to fight the fire, all systems aboard the submarine were shut down, leaving the submarine dead in the water. An attempt to restore auxiliary power caused another fire to break out. At 1912, attempts to remove smoke by starting an oxygen generator caused another fire. Nine sailors were injured, three seriously.[22]

The British frigate Montrose arrived the following day to provide aid. Rescue efforts had been hampered by the poor weather. The three seriously injured crewmen were evacuated by Montrose's helicopter and flown directly to Sligo, Ireland. One sailor died of his injuries shortly after arrival. Chicoutimi was taken in tow on 7 October and arrived back at Faslane on 9 October.[23][24]

Chicoutimi was transported to Halifax aboard the submersible heavy lift vessel Eide Transporter, arriving on 1 February 2005. The commissioning of the submarine was delayed until the assessment of the damage could take place. Following the assessment, Chicoutimi was carried to Esquimalt aboard the submersible heavy lift ship Tern, arriving on 29 April 2009 to undergo a major refit.[8]

Service entry

Windsor became the first active member of the class in Canadian service in June 2005. In the following year and a half, the submarine took part in several international naval exercises and training periods with other Canadian units.[11] Victoria performed several sea trials and training exercises before beginning a major refit, called the Extended Docking Work Period (EDWP), on 27 June 2005.[9] Corner Brook entered her CWP from 2004-2005 and began sea trials on 24 October 2006.[10]

On 15 January 2007, Windsor began the EDWP refit at Halifax.[11] In 2007 Corner Brook participated in the NATO naval exercise "Joint Warrior", marking the first time in fifteen years that Canadian submarine sailed in European waters. In August 2007, Corner Brook participated in Operation Nanook, Canada's naval exercise in the Arctic.[10]

HMCS Corner Brook

In March 2008, Corner Brook deployed as part of Operation Caribbe in the Caribbean Sea.[10] In August 2009 Corner Brook again deployed to the Arctic as part of Operation Nanook.[10]

On 30 January 2011 Corner Brook left Halifax to transfer to the west coast. On the way, the submarine participated in Operation Caribbe. She arrived at Esquimalt on 5 May 2011.[10] On 4 June 2011, Corner Brook while diving off the coast of British Columbia slammed into the seafloor at 5.9 knots (11 km/h) at a depth of 45 metres (148 ft). Two sailors were injured in the collision and the submarine suffered significant damage, with a 2-metre (6 ft 7 in) hole in the bow. Two torpedo tube doors were torn off in the collision.[25] The submarine surfaced and made port without requiring aid.[10] The commander of the submarine was later stripped of his command following a board of inquiry.[26] Repairs and a major refit will keep the sub out of operational service until 2017.[27] Victoria emerged from the EDWP at the end of 2011.[9]

Victoria was declared fully operational in March 2012 and participated in the RIMPAC naval exercise that year, sinking ex-USNS Concord with one of her torpedoes.[9] Windsor finished her refit on 30 November 2012.[11] Victoria participated in Operation Caribbe in 2013.[9] Windsor reentered the dockyard in March 2014 requiring the replacement of a defective diesel generator.[11]

Windsor performed a 105-day training cruise in 2015, making it the longest deployment by a Victoria-class submarine. The submarine participated in training exercises with NATO and several navies in the North Atlantic.[28] During the cruise, Windsor was deployed to track five submarines from another nation that had entered the North Atlantic.[29] Canada announced plans for a major life extension for the class on 7 April 2015, possibly to start in 2020. The estimated cost for the program would be between $1.5 and $2 billion CAN.[30]

On 3 September 2015, Chicoutimi was commissioned into the Royal Canadian Navy at Esquimalt.[31] However, the sub is restricted to shallow-water diving.[32] In October 2015, Chicoutimi was among the Canadian vessels sent to participate in a joint exercise with the United States Navy.[33] Chicoutimi and Victoria were taken out of active service in 2016 after hundreds of welds were found to not meet quality standards, affecting the ability of the subs to dive. They will be docked at Esquimalt for several months.[34] Chicoutimi is to be repaired first, followed by Victoria. Victoria will be used for training purposes until repairs are effected.[35]

See also

Notes

  1. ↑ Cocker has the vessels at 230 ft (70 m) long with a beam 25 feet (7.6 m) and a draught of 27 1⁄2 feet (8.4 m).
  2. ↑ The construction dates of these submarines vary widely from source to source. Dates here are those provided by the Royal Canadian Navy unless otherwise stated.
