Bridgewater Bridge (Tasmania)
| Bridgewater Bridge | |
|---|---|

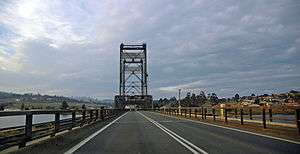

 The Bridgewater Bridge, over the Derwent river between the towns of Granton and Bridgewater. | |
| Coordinates | 42°44′27″S 147°13′31″E / 42.74083°S 147.22528°E |
| Carries |
 Midland Highway South Railway Line |
| Crosses | Derwent River |
| Locale | Hobart, Tasmania |
| Maintained by | Department of Infrastructure, Energy and Resources |
| Characteristics | |
| Design | Vertical lift |
| History | |
| Opened | 1946 |
The Bridgewater Bridge and Causeway spans the Derwent River in Tasmania, Australia between Bridgewater and Granton. It consists of a vertical lift bridge and a specially-built causeway connecting the bridge to the east bank of the river. It accommodates a two-lane highway, a single track railway and, on the bridge section, a footpath. As the bridge is the major connector of the Midland Highway on the eastern shore and the Brooker Highway on the western, the lifting of the bridge can cause considerable traffic delays, depending on the time of day and season.
History
The Bridgewater Bridge was one of the first bridges constructed in Tasmania following British settlement in 1803, and gave its name to the nearby suburb of Bridgewater, Hobart. Lieutenant-Governor George Arthur commissioned the construction of the bridge and causeway as part of the Launceston-Hobart Trunk Road, linking both Tasmanian towns and providing easier access to farmlands in the interior of Tasmania.
The causeway
Construction commenced on the bridge in 1829. Operations were supervised by Roderic O'Connor.[1] The causeway, which was constructed first, was built by a workforce of 200 convicts who had been condemned to secondary punishment. These convicts, using nothing but wheelbarrows, shovels and picks and sheer muscle power, shifted 2 million tonnes (2,200,000 short tons) of soil, stones and clay. The finished causeway stretched 1.3 kilometres (0.8 mi), although did not span the full width of the Derwent. The original plan apparently called for a viaduct, but this plan was abandoned and the half-built arches were filled in to form the present causeway.
The first bridges
Upon completion of the causeway, a punt operated across the deep, navigable section of the river, but could not cope with traffic demands. To resolve this issue, the first bridge across this point of the Derwent opened in 1849. The bridge was designed by the firm of architect and former convict James Blackburn.[2] Being a swing bridge, it could pivot out of the way to allow ships to pass. In the late 1870s, the Launceston-Hobart Railway called for modifications to the causeway so they could lay tracks over it. The causeway required widening and the swing bridge was modified as well.
On 22 July 1886, a train from the north was passing over the bridge when the engine left the tracks and tipped over, hanging precariously above the water on the edge of the southern end of the swing bridge. The fireman and driver were injured, but no one was killed and the locomotive was salvageable. The cause of the accident was found to be that the rails failed to match properly when the bridge was closed, so the bridge was modified again to solve this problem. The bridge lasted several decades more before being replaced by another swing bridge in the early 1900s. The pivot and the sandstone abutments of this bridge are still standing and can be viewed on the left of the present bridge as one travels towards the north.
Both the first and second swing bridges did not run straight off the end of the causeway; rather, they turned slightly to the right. The second swing bridge was left standing when the present lifting bridge was being constructed to prevent traffic stoppages, so the present bridge deviates from the causeway quite appreciably.
The current lift bridge
Construction on the present steel vertical lift bridge across the Derwent began in 1939. It was briefly interrupted by World War II, but was finally completed in 1946. It consists of a long concrete bridge that leads off the end of the causeway, and a steel lifting section just before the northern bank of the river. The lifting section is one of only a few remaining in the Southern Hemisphere, and is the largest of its kind remaining in Australia. The bridge was designed to last a century without replacement. A small control house stands on the lifting section. Inside are the switches and locks which operate the bridge.
Until 1984, the Australian Newsprint Mills (now Norske Skog Paper) at Boyer, near New Norfolk, upstream from Bridgewater, moved all its produce by river. Many barges were used to transport paper from the mill to the storage sheds at Pavilion Point at Hobart, and for this reason the bridge was required to open very frequently. Consequently, a bridge-keeper lived on-site and opened and closed the bridge when required. However, when the decision was made to cease river transportation, an on-site keeper was no longer necessary, so although the bridge can and does still open, bridge openings are now infrequent.
In response to vandalism of the house which contains the bridge operating controls, closed-circuit television cameras were installed along the lifting span sometime between 2003 and 2005.
On 30 October 2006 a fault was found in one of the steel cables holding up the two 170-tonne concrete counterweights above the road, forcing the temporary closure of the bridge. This closure caused peak hour traffic delays, mainly along the East Derwent Highway, due to traffic being diverted over the Bowen and Tasman Bridges. The cables, which were put in place in 1994, were supposed to have a 20-year lifespan, and as they have lasted barely over half that time, investigations are underway as to the maintenance procedures of the bridge.
Replacement
Since 2001 The Federal Government declared $100 million towards the replacement of the Bridgewater Bridge,[3] soon after the State government decided to build the replacement to the south of the existing bridge. However, after years of inaction the State government has encountering some heritage issues with replacing the bridge and is now to be replaced as part of the final stage of the Brighton Bypass and Midland Highway upgrade.
Towards the end of 2010, the State government released plans for a new Derwent river crossing, next to the current bridge.[4] The new bridge will take over the role of carrying the Midland Highway, the old bridge will be left open for Rail, pedestrian and local traffic. While the Bridgewater Bridge is recognised as being limited in its ability to perform the function of the Midland Highway, it also has important Heritage values and is recognised as a Landmark in the area.
From 2006 until 2010, the Bridgewater Bridge was out of commission, due to failed maintenance. The State Government spent $14 million to refurbish the bridge and provide it with a further 15 years of life, until a replacement can be built.
This refurbishment replaced the vandalised control house and its controls and all of the cabling to raise/lower the bridge. Touted as a "major tourist attraction" with expected regular openings for tourist vessels and private vessels alike to travel between Hobart and New Norfolk, the bridge refurbishment has been a major embarrassment to the Tasmanian Government. It has opened no more than 6 times successfully, caused major traffic delays when on one well promoted occasion it raised approx 14 centimetres and was stuck in that position for a number of minutes before being lowered down again.
The State Government proposes to build a $700 million bridge to replace the Bridgewater Bridge, but details of funding have yet to be provided, despite repeated calls for that information.
The alternative to a 4-lane replacement $700 million bridge, is a 2-lane supplement bridge which could cost less than half as much if the existing cause-way is utilised.
