Internal ballistics

Internal ballistics (also interior ballistics), a subfield of ballistics, is the study of the propulsion of a projectile.

In guns internal ballistics covers the time from the propellant's ignition until the projectile exits the gun barrel.[1] The study of internal ballistics is important to designers and users of firearms of all types, from small-bore rifles and pistols, to high-tech artillery.

For rocket-propelled projectiles, internal ballistics covers the period during which a rocket motor is providing thrust.[2]

Parts and equations

Hatcher breaks the duration of interior ballistics into 3 parts:[3]

These times have significance for accuracy. If the weapon is moving, then a shorter lock time minimizes the effect of that motion. The consistency of the ignition and barrel times affect and relate to the muzzle velocity.

There are many processes that are significant. The source of energy is the burning propellant. It generates hot gases that raise the chamber pressure. That pressure pushes on the base of the projectile, and causes the projectile to accelerate. The chamber pressure depends on many factors. The amount of propellant that has burned, the temperature of the gases, and the volume of the chamber. The burn rate of the propellant depends not only on the chemical make up, but also on the shape of the propellant grains. The temperature depends not only on the energy released, but also the heat lost to the sides of the barrel and chamber. The volume of the chamber is continuously changing: as the propellant burns, there is more volume for the gas to occupy. As the projectile travels down the barrel, the volume behind the projectile also increases.

There are still other effects. Some energy is lost in deforming the projectile and causing it to spin. There are also frictional losses between the projectile and the barrel. The projectile, as it travels down the barrel, compresses the air in front of it.

Models have been developed for these processes.[4][5]

These processes affect the gun design. The breech and the barrel must resist the high-pressure gases without damage. Although the pressure initially rises to a high value, the pressure starts dropping when the projectile has traveled some distance down the barrel. Consequently, the muzzle end of the barrel does not need to be as strong as the chamber end.

There are five general equations used in interior ballistics:[6]

  1. The equation of state of the propellant
  2. The equation of energy
  3. The equation of motion
  4. The burning rate equation
  5. The equation of the form function

History

There was a time when internal ballistics did not have a lot of objective information. Barrels and actions would be built strong enough to survive a known overload (proof), and muzzle velocity could be measured.

Then barrels were instrumented. Holes were drilled in the barrel, "crusher gauges" using copper pellets were attached, the gun was fired, and the pressure was measured indirectly by how much the copper pellet was deformed. But the measurement only indicated the maximum pressure that was reached at that point in the barrel.[7] Later, piezoelectric strain gauges were used. They allow instantaneous pressures to be measured and did not need a pressure port drilled into the barrel.

Later, instrumented projectiles were developed that could measure the pressure at the base of the projectile and its acceleration.

Priming methods

Main article: Primer (firearm)

Through the years, several methods of igniting the propellant have been developed. Originally, a small hole (a touch hole) was drilled into the breech so that a fine propellant (often the same propellant used in the gun) could be poured in, and an external flame was applied. Later, self-contained cartridges had primers that detonated after mechanical deformation, igniting the propellant. Electric current can also be used to ignite the propellant.

Propellants

Black powder

Main article: Gunpowder

Gunpowder (Black powder) is a finely ground, pressed and granulated mechanical mixture of sulfur, charcoal, and potassium nitrate or sodium nitrate. It can be produced in a range of grain sizes. The size and shape of the grains can increase or decrease the relative surface area, and change the burning rate significantly. The burning rate of black powder is relatively insensitive to pressure, meaning it will burn quickly even without confinement,[8] making it also suitable for use as a low explosive. It has a very slow decomposition rate, and therefore a very low brisance. It is not, in the strictest sense of the term, an explosive, but a "deflagrant", as it does not detonate but decomposes by deflagration due to its subsonic mechanism of flame-front propagation.

Nitrocellulose (single-base propellants)

Main article: Smokeless powder

Nitrocellulose or "guncotton" is formed by the action of nitric acid on cellulose fibers. It is a highly combustible fibrous material that deflagrates rapidly when heat is applied. It also burns very cleanly, burning almost entirely to gaseous components at high temperatures with little smoke or solid residue. Gelatinised nitrocellulose is a plastic, which can be formed into cylinders, tubes, balls, or flakes known as single-base propellants. The size and shape of the propellant grains can increase or decrease the relative surface area, and change the burn rate significantly. Additives and coatings can be added to the propellant to further modify the burn rate. Normally, very fast powders are used for light-bullet or low-velocity pistols and shotguns, medium-rate powders for magnum pistols and light rifle rounds, and slow powders for large-bore heavy rifle rounds.[9]

Double-base propellants

Main articles: Ballistite, Cordite, and Smokeless powder

Nitroglycerin can be added to nitrocellulose to form "double-base propellants". Nitrocellulose desensitizes nitroglycerin to prevent detonation, and the nitroglycerin gelatinises the nitrocellulose and increases the energy. Double-base powders burn faster than single-base powders of the same shape, though not as cleanly, and burn rate increases with nitroglycerin content.

In artillery, Ballistite or Cordite has been used in the form of rods, tubes, slotted-tube, perforated-cylinder or multi-tubular; the geometry being chosen to provide the required burning characteristics. (Round balls or rods, for example, are "degressive-burning" because their production of gas decreases with their surface area as the balls or rods burn smaller; thin flakes are "neutral-burning," since they burn on their flat surfaces until the flake is completely consumed. The longitudally perforated or multi-perforated cylinders used in large, long-barreled rifles or cannon are "progressive-burning;" the burning surface increases as the inside diameter of the holes enlarges, giving sustained burning and a long, continuous push on the projectile to produce higher velocity without increasing the peak pressure unduly. Progressive-burning powder compensates somewhat for the pressure drop as the projectile accelerates down the bore and increases the volume behind it.)

Solid propellants (caseless ammunition)

A recent topic of research has been in the realm of "caseless ammunition". In a caseless cartridge, the propellant is cast as a single solid grain, with the priming compound placed in a hollow at the base, and the bullet attached to the front. Since the single propellant grain is so large (most smokeless powders have grain sizes around 1 mm, but a caseless grain will be perhaps 7 mm diameter and 15 mm long), the relative burn rate must be much higher. To reach this rate of burning, caseless propellants often use moderated explosives, such as RDX. (Caseless ammunition might be considered a return to the mid-19th century, since the first practical cartridge repeater, the "Volcanic" pistol, used a charge of black powder in a cavity in the bullet base. This weapon was the direct ancestor of the Henry and Winchester rifles, though they switched to metal-cased ammunition. Some early rifles and revolvers also used combustible-paper cartridges, but they required a separate ignition system.) The major advantages of a successful caseless round would be elimination of the need to extract and eject the spent cartridge case, permitting higher rates of fire and a simpler mechanism, and also reduced ammunition weight by eliminating the weight (and cost) of the brass or steel case.

While there is at least one experimental military rifle (the H&K G11), and one commercial rifle (the Voere VEC-91), that use caseless rounds, they have met with little success. One other commercial rifle was the Daisy VL rifle made by the Daisy Air Rifle Co. and chambered for .22 caliber caseless ammunition that was ignited by a hot blast of compressed air from the lever used to compress a strong spring like for an air rifle. The caseless ammunition is of course not reloadable, since there is no casing left after firing the bullet, and the exposed propellant makes the rounds less durable. Also, the case in a standard cartridge serves as a seal, keeping gas from escaping the breech. Caseless arms must use a more complex self-sealing breech, which increases the design and manufacturing complexity. Another unpleasant problem, common to all rapid-firing arms but particularly problematic for those firing caseless rounds, is the problem of rounds "cooking off". This problem is caused by residual heat from the chamber heating the round in the chamber to the point where it ignites, causing an unintentional discharge.

Belt-fed machine guns or magazine-fed submachine guns designed for high volumes of fire usually fire from an open bolt, with the round not chambered until the trigger is pulled, and so there is no chance for the round to cook off before the operator is ready. Such weapons could use caseless ammunition effectively. Open-bolt designs are generally undesirable for anything but belt-fed machine guns and pistol-cartridge submachine guns; the mass of the bolt moving forward causes the gun to lurch in reaction, which significantly reduces the accuracy of the gun. Since one of the motivating factors for the use of caseless rounds is to increase the rate of fire to the degree that several shots can be fired to the same point of aim, anything that reduces the accuracy of those first shots would be counterproductive. Cased ammunition serves as a heat sink, to carry heat away from the chamber after firing; the hot case carries away much of the heat before it can transfer to the chamber walls, and the new case absorbs heat from the chamber, reducing the risk of cook-off.

Propellant charge

Load density and consistency

Load density is the percentage of the space in the cartridge case that is filled with powder. In general, loads close to 100% density (or even loads where seating the bullet in the case, compresses the powder) ignite and burn more consistently than lower-density loads. In cartridges surviving from the black-powder era (examples being .45 Colt, .45-70 Government), the case is much larger than is needed to hold the maximum charge of high-density smokeless powder. This extra room allows the powder to shift in the case, piling up near the front or back of the case and potentially causing significant variations in burning rate, as powder near the rear of the case will ignite rapidly but powder near the front of the case will ignite later. This change has less impact with fast powders. Such high-capacity, low-density cartridges generally deliver best accuracy with the fastest appropriate powder, although this keeps the total energy low due to the sharp high-pressure peak.

Magnum pistol cartridges reverse this power/accuracy tradeoff by using lower-density, slower-burning powders that give high load density and a broad pressure curve. The downside is the increased recoil and muzzle blast from the high powder mass, and high muzzle pressure.

Most rifle cartridges have a high load density with the appropriate powders. Rifle cartridges tend to be bottlenecked, with a wide base narrowing down to a smaller diameter, to hold a light, high-velocity bullet. These cases are designed to hold a large charge of low-density powder, for an even broader pressure curve than a magnum pistol cartridge. These cases require the use of a long rifle barrel to extract their full efficiency, although they are also chambered in rifle-like pistols (single-shot or bolt-action) with barrels of 10 to 15 inches (25 to 38 cm).

One unusual phenomenon occurs when dense, low-volume powders are used in large-capacity rifle cases. Small charges of powder, unless held tightly near the rear of the case by wadding, can apparently detonate when ignited, sometimes causing catastrophic failure of the firearm. The mechanism of this phenomenon is not well known, and generally it is not encountered except when loading low recoil or low-velocity subsonic rounds for rifles. These rounds generally have velocities of under 1100 ft/s (320 m/s), and are used for indoor shooting, in conjunction with a suppressor or for pest control, where the power and muzzle blast of a full-power round is not needed or desired.

Chamber

Straight vs bottleneck

Straight walled cases were the standard from the beginnings of cartridge arms. With the low burning speed of black powder, the best efficiency was achieved with large, heavy bullets, so the bullet was the largest practical diameter. The large diameter allowed a short, stable bullet with high weight, and the maximum practical bore volume to extract the most energy possible in a given length barrel. There were a few cartridges that had long, shallow tapers, but these were generally an attempt to use an existing cartridge to fire a smaller bullet with a higher velocity and lower recoil. With the advent of smokeless powders, it was possible to generate far higher velocities by using a slow smokeless powder in a large volume case, pushing a small, light bullet. The odd, highly tapered 8 mm Lebel, made by necking down an older 11 mm black-powder cartridge, was introduced in 1886, and it was soon followed by the 7.92×57mm Mauser and 7×57mm Mauser military rounds, and the commercial .30-30 Winchester, all of which were new designs built to use smokeless powder. All of these have a distinct shoulder that closely resembles modern cartridges, and with the exception of the Lebel they are still chambered in modern firearms even though the cartridges are over a century old.

Aspect ratio and consistency

When selecting a rifle cartridge for maximum accuracy, a short, fat cartridge with very little case taper will generally yield higher efficiency and more consistent velocity than a long, thin cartridge with a lot of case taper (part of the reason for a bottle-necked design).[10] Given current trends towards shorter and fatter cases, such as the new Winchester Super Short Magnum cartridges, it appears the ideal might be a case approaching spherical inside.[11] Target and varmint hunting rounds require the greatest accuracy, so their cases tend to be short, fat, and nearly untapered with sharp shoulders on the case. Short, fat cases also allow short-action weapons to be made lighter and stronger for the same level of performance. The trade-off for this performance is fat rounds which take up more space in a magazine, sharp shoulders that do not feed as easily out of a magazine, and less reliable extraction of the spent round. For these reasons, when reliable feeding is more important than accuracy, such as with military rifles, longer cases with shallower shoulder angles are favored. There has been a long-term trend however, even among military weapons, towards shorter, fatter cases. The current 7.62×51mm NATO case replacing the longer .30-06 Springfield is a good example, as is the new 6.5 Grendel cartridge designed to increase the performance of the AR-15 family of rifles and carbines.

Friction and inertia

Static friction and ignition

Since the burning rate of smokeless powder varies directly with the pressure, the initial pressure buildup has a significant effect on the final velocity, especially in cartridges with fast powders. The friction, holding the bullet in the case, determines how soon after ignition the bullet moves, and since the motion of the bullet increases the volume and drops the pressure, a difference in friction can change the slope of the pressure curve. In general, a tight fit is desired, to the extent of crimping the bullet into the case. In straight-walled rimless cases, such as the .45 ACP, an aggressive crimp is not possible, since the case is held in the chamber by the mouth of the case, but sizing the case to allow a tight interference fit with the bullet, can give the desired result.

Kinetic friction

The bullet must tightly fit the bore to seal the high pressure of the burning gunpowder. This tight fit results in a large frictional force. The friction of the bullet in the bore does have a slight impact on the final velocity, but that is generally not much of a concern. Of greater concern is the heat that is generated due to the friction. At velocities of about 300 m/s (980 ft/s), lead begins to melt, and deposit in the bore. This lead build-up constricts the bore, increasing the pressure and decreasing the accuracy of subsequent rounds, and is difficult to scrub out without damaging the bore. Rounds, used at velocities up to 460 m/s (1,500 ft/s), can use wax lubricants on the bullet to reduce lead build-up. At velocities over 460 m/s (1,500 ft/s), nearly all bullets are jacketed in copper, or a similar alloy that is soft enough not to wear on the barrel, but melts at a high enough temperature to reduce build-up in the bore. Copper build-up does begin to occur in rounds that exceed 760 m/s (2,500 ft/s), and a common solution is to impregnate the surface of the bullet with molybdenum disulfide lubricant. This reduces copper build-up in the bore, and results in better long-term accuracy.

The role of inertia

In the first few centimeters of travel down the bore, the bullet reaches a significant percentage of its final velocity, even for high-capacity rifles, with slow burning powder. The acceleration is on the order of tens of thousands of gravities, so even a projectile as light as 40 grains (2.6 g) can provide over 1,000 newtons (220 lbf) of resistance due to inertia. Changes in bullet mass, therefore, have a huge impact on the pressure curves of smokeless powder cartridges, unlike black-powder cartridges. The loading or reloading of smokeless cartridges thus requires high-precision equipment, and carefully measured tables of load data for given cartridges, powders, and bullet weights.

Pressure-velocity relationships

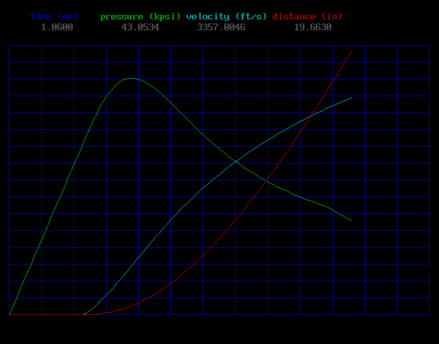

This is a graph of a simulation of the 5.56 mm NATO round, being fired from a 20-inch (510 mm) barrel. The horizontal axis represents time, the vertical axis represents pressure (green line), bullet travel (red line), and bullet velocity (light blue line). The values shown at top are peak values

Energy is imparted to the bullet in a firearm by the pressure of gases produced by burning propellant. While higher pressures produce higher velocities, pressure duration is also important. Peak pressure may represent only a small fraction of the time the bullet is accelerating. The entire duration of the bullet's travel through the barrel must be considered.

Peak vs area

This graph shows different pressure curves for powders with different burn rates. The leftmost graph is the same as the large graph above. The middle graph shows a powder with a 25% faster burn rate, and the rightmost graph shows a powder with a 20% slower burn rate.

Energy is defined as the ability to do work on an object; for example, the work required to lift a one-pound weight, one foot against the pull of gravity defines a foot-pound of energy (One joule is equal to the energy needed to move a body over a distance of one meter using one newton of force). If we were to modify the graph to reflect force (the pressure exerted on the base of the bullet multiplied by the area of the base of the bullet) as a function of distance, the area under that curve would be the total energy imparted to the bullet. Increasing the energy of the bullet requires increasing the area under that curve, either by raising the average pressure, or increasing the distance the bullet travels under pressure. Pressure is limited by the strength of the firearm, and duration is limited by barrel length.

Propellant design

Propellants are carefully matched to firearm strength, chamber volume and barrel length, and to bullet material, weight and dimensions.[12] The rate of gas generation is proportional to the surface area of burning propellant grains in accordance with Piobert's Law. Progression of burning from the surface into the grains is attributed to heat transfer from the surface of energy necessary to initiate the reaction.[13] Smokeless propellant reactions occur in a series of zones or phases as the reaction proceeds from the surface into the solid. The deepest portion of the solid experiencing heat transfer melts and begins phase transition from solid to gas in a foam zone. The gaseous propellant decomposes into simpler molecules in a surrounding fizz zone. Endothermic transformations in the foam zone and fizz zone require energy initially provided by the primer and subsequently released in a luminous outer flame zone where the simpler gas molecules react to form conventional combustion products like steam and carbon monoxide.[14]

The heat transfer rate of smokeless propellants increases with pressure; so the rate of gas generation from a given grain surface area increases at higher pressures.[13] Accelerating gas generation from fast burning propellants may rapidly create a destructively high pressure spike before bullet movement increases reaction volume. Conversely, propellants designed for a minimum heat transfer pressure may cease decomposition into gaseous reactants if bullet movement decreases pressure before a slow burning propellant has been consumed. Unburned propellant grains may remain in the barrel if the energy-releasing flame zone cannot be sustained in the resultant absence of gaseous reactants from the inner zones.[14]

Propellant burnout

Another issue to consider, when choosing a powder burn rate, is the time the powder takes to completely burn vs. the time the bullet spends in the barrel. Looking carefully at the left graph, there is a change in the curve, at about 0.8 ms. This is the point at which the powder is completely burned, and no new gas is created. With a faster powder, burnout occurs earlier, and with the slower powder, it occurs later. Propellant that is unburned when the bullet reaches the muzzle is wasted it adds no energy to the bullet, but it does add to the recoil and muzzle blast. For maximum power, the powder should burn until the bullet is just short of the muzzle.

Since smokeless powders burn, not detonate, the reaction can only take place on the surface of the powder. Smokeless powders come in a variety of shapes, which serve to determine how fast they burn, and also how the burn rate changes as the powder burns. The simplest shape is a ball powder, which is in the form of round or slightly flattened spheres. Ball powder has a comparatively small surface-area-to-volume ratio, so it burns comparatively slowly, and as it burns, its surface area decreases. This means as the powder burns, the burn rate slows down.

To some degree, this can be offset by the use of a retardant coating on the surface of the powder, which slows the initial burn rate and flattens out the rate of change. Ball powders are generally formulated as slow pistol powders, or fast rifle powders.

Flake powders are in the form of flat, round flakes which have a relatively high surface-area-to-volume ratio. Flake powders have a nearly constant rate of burn, and are usually formulated as fast pistol or shotgun powders. The last common shape is an extruded powder, which is in the form of a cylinder, sometimes hollow. Extruded powders generally have a lower ratio of nitroglycerin to nitrocellulose, and are often progressive burning that is, they burn at a faster rate as they burn. Extruded powders are generally medium to slow rifle powders.

Muzzle pressure concerns

From the pressure graphs, it can be seen that the residual pressure in the barrel as the bullet exits is quite high, in this case over 16 kpsi / 110 MPa / 1100 bar. While lengthening the barrel or reducing the amount of propellant gas will reduce this pressure, that often is not possible due to issues of firearm size and minimum required energy. Short-range target guns usually are chambered for .22 Long Rifle or .22 Short, which have very tiny powder capacities and little residual pressure. When higher energies are required for long-range shooting, hunting or anti-personnel use, high muzzle pressures are a necessary evil. With these high muzzle pressures come increased flash and noise from the muzzle blast, and, due to the large powder charges used, higher recoil. Recoil includes the reaction caused not just by the bullet, but also by the powder mass and speed (with the residual gases acting as a rocket exhaust). However, for a muzzle brake to be effective there must be significant muzzle pressure.

General concerns

Bore diameter and energy transfer

A firearm, in many ways, is like a piston engine on the power stroke. There is a certain amount of high-pressure gas available, and energy is extracted from it by making the gas move a piston in this case, the projectile is the piston. The swept volume of the piston determines how much energy can be extracted from the given gas. The more volume that is swept by the piston, the lower is the exhaust pressure (in this case, the muzzle pressure). Any remaining pressure at the muzzle or at the end of the engine's power stroke represents lost energy.

To extract the maximum amount of energy, then, the swept volume is maximized. This can be done in one of two ways increasing the length of the barrel or increasing the diameter of the projectile. Increasing the barrel length will increase the swept volume linearly, while increasing the diameter will increase the swept volume as the square of the diameter. Since barrel length is limited by practical concerns to about arm's length for a rifle and much shorter for a handgun, increasing bore diameter is the normal way to increase the efficiency of a cartridge. The limit to bore diameter is generally the sectional density of the projectile (see external ballistics). Larger-diameter bullets of the same weight have much more drag, and so they lose energy more quickly after exiting the barrel. In general, most handguns use bullets between .355 (9 mm) and .45 (11.5 mm) caliber, while most rifles generally range from .223 (5.56 mm) to .32 (8 mm) caliber. There are many exceptions, of course, but bullets in the given ranges provide the best general-purpose performance. Handguns use the larger-diameter bullets for greater efficiency in short barrels, and tolerate the long-range velocity loss since handguns are seldom used for long-range shooting. Handguns designed for long-range shooting are generally closer to shortened rifles than to other handguns.

Ratio of propellant to projectile mass

Another issue, when choosing or developing a cartridge, is the issue of recoil. The recoil is not just the reaction from the projectile being launched, but also from the powder gas, which will exit the barrel with a velocity even higher than that of the bullet. For handgun cartridges, with heavy bullets and light powder charges (a 9×19mm, for example, might use 5 grains (320 mg) of powder, and a 115 grains (7.5 g) bullet), the powder recoil is not a significant force; for a rifle cartridge (a .22-250 Remington, using 40 grains (2.6 g) of powder and a 40 grains (2.6 g) bullet), the powder can be the majority of the recoil force.

There is a solution to the recoil issue, though it is not without cost. A muzzle brake or recoil compensator is a device which redirects the powder gas at the muzzle, usually up and back. This acts like a rocket, pushing the muzzle down and forward. The forward push helps negate the feel of the projectile recoil by pulling the firearm forwards. The downward push, on the other hand, helps counteract the rotation imparted by the fact that most firearms have the barrel mounted above the center of gravity. Overt combat guns, large-bore high-powered rifles, long-range handguns chambered for rifle ammunition, and action-shooting handguns designed for accurate rapid fire, all benefit from muzzle brakes.

The high-powered firearms use the muzzle brake mainly for recoil reduction, which reduces the battering of the shooter by the severe recoil. The action-shooting handguns redirect all the energy up to counteract the rotation of the recoil, and make following shots faster by leaving the gun on target. The disadvantage of the muzzle brake is a longer, heavier barrel, and a large increase in sound levels and flash behind the muzzle of the rifle. Shooting firearms without muzzle brakes and without hearing protection can eventually damage the operator's hearing; however, shooting rifles with muzzle brakes - with or without hearing protection - causes permanent ear damage.[15] (See muzzle brake for more on the disadvantages of muzzle brakes.)

Powder-to-projectile-weight ratio also touches on the subject of efficiency. In the case of the .22-250 Remington, more energy goes into propelling the powder gas than goes into propelling the bullet. The .22-250 pays for this by requiring a large case, with lots of powder, all for a fairly small gain in velocity and energy over other .22 caliber cartridges.

Accuracy and bore characteristics

Nearly all small bore firearms, with the exception of shotguns, have rifled barrels. The rifling imparts a spin on the bullet, which keeps it from tumbling in flight. The rifling is usually in the form of sharp edged grooves cut as helices along the axis of the bore, anywhere from 2 to 16 in number. The areas between the grooves are known as lands.

Another system, polygonal rifling, gives the bore a polygonal cross section. Polygonal rifling is not very common, used by only a few European manufacturers as well as the American gun manufacturer Kahr Arms. The companies that use polygonal rifling claim greater accuracy, lower friction, and less lead and/or copper buildup in the barrel. Traditional land and groove rifling is used in most competition firearms, however, so the advantages of polygonal rifling are unproven.

There are three common ways of rifling a barrel, and one emerging technology:

The purpose of the barrel is to provide a consistent seal, allowing the bullet to accelerate to a consistent velocity. It must also impart the right spin, and release the bullet consistently, perfectly concentric to the bore. The residual pressure in the bore must be released symmetrically, so that no side of the bullet receives any more or less push than the rest. The muzzle of the barrel is the most critical part, since that is the part that controls the release of the bullet. Some rimfires and airguns actually have a slight constriction, called a choke, in the barrel at the muzzle. This guarantees that the bullet is held securely just before release.

To keep a good seal, the bore must be a very precise, constant diameter, or have a slight decrease in diameter from breech to muzzle. Any increase in bore diameter will allow the bullet to shift. This can cause gas to leak past the bullet, affecting the velocity, or cause the bullet to tip, so that it is no longer perfectly coaxial with the bore. High quality barrels are lapped to remove any constrictions in the bore which will cause a change in diameter.

A lapping process known as "fire lapping" uses a lead "slug" that is slightly larger than the bore and covered in fine abrasive compound to cut out the constrictions. The slug is passed from breech to muzzle, so that as it encounters constrictions, it cuts them away, and does no cutting on areas that are larger than the constriction. Many passes are made, and as the bore becomes more uniform, finer grades of abrasive compound are used. The final result is a barrel that is mirror-smooth, and with a consistent or slightly tapering bore. The hand-lapping technique uses a wooden or soft metal rod to pull or push the slug through the bore, while the newer fire-lapping technique uses specially loaded, low-power cartridges to push abrasive-covered soft-lead bullets down the barrel.

Another issue that has an effect on the barrel's hold on the bullet is the rifling. When the bullet is fired, it is forced into the rifling, which cuts or "engraves" the surface of the bullet. If the rifling is a constant twist, then the rifling rides in the grooves engraved in the bullet, and everything is secure and sealed. If the rifling has a decreasing twist, then the changing angle of the rifling in the engraved grooves of the bullet causes the rifling to become narrower than the grooves. This allows gas to blow by, and loosens the hold of the bullet on the barrel. An increasing twist, however, will make the rifling become wider than the grooves in the bullet, maintaining the seal. When a rifled-barrel blank is selected for a gun, careful measurement of the inevitable variations in manufacture can determine if the rifling twist varies, and put the higher-twist end at the muzzle.

The muzzle of the barrel is the last thing to touch the bullet before it goes into ballistic flight, and as such has the greatest potential to disrupt the bullet's flight. The muzzle must allow the gas to escape the barrel symmetrically; any asymmetry will cause an uneven pressure on the base of the bullet, which will disrupt its flight. The muzzle end of the barrel is called the "crown", and it is usually either beveled or recessed to protect it from bumps or scratches that might affect accuracy. A sign of a good crown will be a symmetric, star-shaped pattern on the muzzle end of the barrel, formed by soot deposited, as the powder gases escape the barrel. If the star is uneven, then it is a sign of an uneven crown, and an inaccurate barrel.

Before the barrel can release the bullet in a consistent manner, it must grip the bullet in a consistent manner. The part of the barrel between where the bullet exits the cartridge, and engages the rifling, is called the "throat", and the length of the throat is the freebore. In some firearms, the freebore is all but nonexistent the act of chambering the cartridge forces the bullet into the rifling. This is common in low-powered rimfire target rifles. The placement of the bullet in the rifling ensures that the transition between cartridge and rifling is quick and stable. The downside is that the cartridge is firmly held in place, and attempting to extract the unfired round can be difficult, to the point of even pulling the bullet from the cartridge in extreme cases.

With high-powered cartridges, there is an additional disadvantage to a short freebore. A significant amount of force is required to engrave the bullet, and this additional resistance can raise the pressure in the chamber by quite a bit. To mitigate this effect, higher-powered rifles tend to have more freebore, so that the bullet is allowed to gain some momentum, and the chamber pressure is allowed to drop slightly, before the bullet engages the rifling. The downside is that the bullet hits the rifling when already moving, and any slight misalignment can cause the bullet to tip as it engages the rifling. This will, in turn, mean that the bullet does not exit the barrel coaxially. The amount of freebore is a function of both the barrel and the cartridge. The manufacturer or gunsmith who cuts the chamber will determine the amount of space between the cartridge case mouth and the rifling. Setting the bullet further forward or back in the cartridge can decrease or increase the amount of freebore, but only within a small range. Careful testing by the ammunition loader can optimize the amount of freebore to maximize accuracy, while keeping the peak pressure within limits.

Revolver-specific issues

The defining characteristic of a revolver is the revolving cylinder, separate from the barrel, that contains the chambers. Revolvers typically have 5 to 10 chambers, and the first issue is ensuring consistency among the chambers, because if they aren't consistent then the point of impact will vary from chamber to chamber. The chambers must also align consistently with the barrel, so the bullet enters the barrel the same way from each chamber.[41]

The throat in a revolver is part of the cylinder, and like any other chamber, the throat should be sized so that it is concentric to the chamber and very slightly over the bullet diameter. At the end of the throat, however, things change. First, the throat in a revolver is at least as long as the maximum overall length of the cartridge, otherwise the cylinder cannot revolve. The next step is the cylinder gap, the space between the cylinder and barrel. This must be wide enough to allow free rotation of the cylinder even when it becomes fouled with powder residue, but not so large that excessive gas is released. The next step is the forcing cone. The forcing cone is where the bullet is guided from the cylinder into the bore of the barrel. It should be concentric with the bore, and deep enough to force the bullet into the bore without significant deformation. Unlike rifles, where the threaded portion of the barrel is in the chamber, revolver barrels threads surround the breech end of the bore, and it is possible that the bore will be compressed when the barrel is screwed into the frame. Cutting a longer forcing cone can relieve this "choke" point, as can lapping of the barrel after it is fitted to the frame.[41][42][43]
