Vickers 131 Valiant

For the V-bomber, see Vickers Valiant.
Valiant

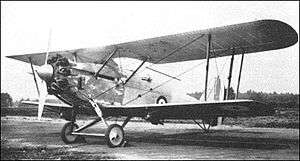

Vickers 131 Valiant at Martlesham Heath, 1927
Role General purpose biplane
National origin United Kingdom
Manufacturer Vickers Limited
First flight 1927
Introduction 1928
Retired 1929
Primary user Chilean Air Force
Number built 1


The Vickers Type 131 Valiant was a British general-purpose biplane produced by Vickers in 1927,[1] with the intention of replacing the Royal Air Force's Airco DH.9As, but was unsuccessful, with only a single example built, which was sold to Chile.

Development and design

In 1926, based on experience with the wooden-winged Vickers Vixen biplane, where the wings proved vulnerable to extremes of temperature and humidity, designed a set of metal wings for the Vixen, with which it became the Vickers Vivid, and in parallel, designed an all-metal general purpose biplane, the Vickers Type 131, hoping to replace the DH.9A in that role.[2] In 1927, the British Air Ministry issued Specification 26/27 for a DH.9A replacement which, to save money, had to use as many components of the DH.9A as possible because the RAF held large stocks of DH.9A spares. Vickers submitted the Type 131 design to the Ministry but, as it did not make use of the required DH9A components, did not receive a contract for a prototype. However Vickers decided to build a single prototype as a private venture for evaluation against the specification.[3]

The Vickers 131 Valiant was a single-bay biplane of all-metal construction, sharing much of the structure with the Vivid. It was powered by a 492 hp (367 kW) Bristol Jupiter engine, and the crew of two sat in separate but adjacent cockpits, giving good communication between the pilot and observer. It could carry up to 500 lb (230 kg) of bombs under the wing, with a fixed Vickers machine gun for the pilot and a Lewis gun on a Scarff ring for the observer.[4][5]

The prototype had made its first flight by 5 March 1927,[6] and underwent official evaluation against the designs from Bristol (the Beaver), Fairey (the Fairey Ferret and IIIF), Gloster (the Goral) and Westland (the Wapiti). Its initial tests showed it to possess good handling,[7] and was taken forwards for squadron trials, along with the Ferret, IIIF and Wapiti.[8] Following these trials, the Wapiti was chosen as the winner, with the Valiant, which was 30% more expensive than the Wapiti,[9] rejected because it was a poor bombing platform, not being sufficiently stable.[8]

Operational history

The Valiant was shipped to Chile in 1928 for demonstration to the Chilean Air Force that wanted a replacement for their Vixens. While no production followed, Chile purchased the prototype,[1] which entered service with the School of Aviation, being destroyed in a crash on 29 March 1929.[8]

Operators

 Chile

Specifications (Type 131 Valiant)

Data from Limited Editions Part 7:Vickers Valiant biplane [8]

General characteristics

Performance

Armament

See also

Related development


Related lists

References

Wikimedia Commons has media related to Vickers 131 Valiant.

Notes

  1. 1 2 Jackson 1974, p. 355
  2. ↑ Andrews and Morgan, pp. 187-188.
  3. ↑ Mason 1994, p. 191.
  4. ↑ Mason 1994, p. 192.
  5. ↑ Jarrett 1997, pp. 31-33.
  6. ↑ Jarrett 1997, p. 33.
  7. ↑ Andrews and Morgan 1988, p. 189.
  8. 1 2 3 4 Jarrett 1997, p. 35.
  9. ↑ Mason 1994, p. 189.
  10. ↑ Tail down.

Bibliography

  • Andrews, C.F.; E.B. Morgan (1988). Vickers Aircraft since 1908. London: Putnam. ISBN 0-85177-815-1.
  • Jackson, A.J. (1974). British Civil Aircraft since 1919 Volume 3. London: Putnam. ISBN 0-370-10014-X.
  • Jarrett, Philip (March 1997). "Limited Editions Part 7: Vickers Valiant biplane". Aeroplane Monthly. Vol. 25 no. 3. London: IPC. pp. 30–36. ISSN 0143-7240.
  • Mason, Francis K. (1994). The British Bomber since 1914. London: Putnam. ISBN 0-85177-861-5.
