Line 7, Beijing Subway

Line 7, Beijing Subway
Overview
Type Rapid transit
System Beijing Subway
Stations 19
Daily ridership 182,800 (2014 Avg.)[1]
485,200 (2016 Peak)[2]
Operation
Operator(s) Beijing Mass Transit Railway Operation Corp., Ltd
Technical
Line length 23.7 km (14.7 mi)
Track gauge 1,435 mm (4 ft 8 1⁄2 in)
Route map
Lines 7, 9
[{{fullurl:{{{1}}}|action=edit}}    ]
[{{fullurl:{{{1}}}|action=edit}}    ]
 Beijing West
[{{fullurl:{{{1}}}|action=edit}}    ]
 Wanzi
Lines 16, 7
[{{fullurl:{{{1}}}|action=edit}}    ]
 Daguanying
Line 16 opens 2017
[{{fullurl:{{{1}}}|action=edit}}    ]
 Guang'anmennei
Lines 4, 7
[{{fullurl:{{{1}}}|action=edit}}    ]
[{{fullurl:{{{1}}}|action=edit}}    ]
 Caishikou
[{{fullurl:{{{1}}}|action=edit}}    ]
 Hufangqiao
Lines 7, 8
[{{fullurl:{{{1}}}|action=edit}}    ]
 Zhushikou
Line 8 opens 2017
[{{fullurl:{{{1}}}|action=edit}}    ]
 Qiaowan
Lines 5, 7
[{{fullurl:{{{1}}}|action=edit}}    ]
[{{fullurl:{{{1}}}|action=edit}}    ]
 Ciqikou
[{{fullurl:{{{1}}}|action=edit}}    ]
 Guangqumennei
[{{fullurl:{{{1}}}|action=edit}}    ]
 Guangqumenwai
Lines 7, 10
[{{fullurl:{{{1}}}|action=edit}}    ]
 Shuangjing
Lines 14, 7
[{{fullurl:{{{1}}}|action=edit}}    ]
[{{fullurl:{{{1}}}|action=edit}}    ]
 Jiulongshan
[{{fullurl:{{{1}}}|action=edit}}    ]
 Dajiaoting
[{{fullurl:{{{1}}}|action=edit}}    ]
 Baiziwan
[{{fullurl:{{{1}}}|action=edit}}    ]
 Huagong
[{{fullurl:{{{1}}}|action=edit}}    ]
 Nanlouzizhuang
[{{fullurl:{{{1}}}|action=edit}}    ]
 Happy Valley Scenic Area
Fatou
[{{fullurl:{{{1}}}|action=edit}}    ]
 Shuanghe
[{{fullurl:{{{1}}}|action=edit}}    ]
 Jiaohuachang

Line 7 of the Beijing Subway (Chinese: 北京地铁7号线; pinyin: běijīng dìtiě qīhàoxiàn) is a rapid transit rail line in Beijing. It runs parallel and to the south of Line 1 and Batong Line, from the Beijing West Railway Station in Xuanwu District to Jiaohuachang (Coking Plant) in Tongzhou District. Construction began in January 2010.[3] It started test runs in September 2014 with full operation beginning on December 28, 2014.[4] Like Line 6, Line 7 provides additional relief to the overcapacity Line 1 adding another east-west trunk line to the Beijing Subway network.[5]

Route

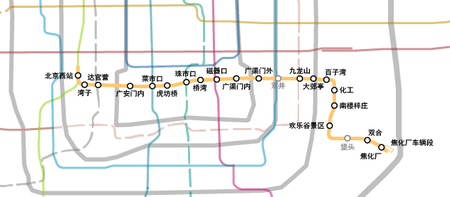

Line 7 to scale

Line 7 currently has 19 operational stations and is planned to have a total of 23 stations. The stations have longer platforms that accommodate 8-train cars, longer than existing Beijing subway station platforms which can only accommodate 6-train cars.[6] The line was originally slated to have 17 stations, from the Beijing West Station to Baiziwan.[7] A revised plan approved by the Planning Committee of the Beijing Municipal government called for 22 stations over 23.9 km, ending in Jiaohuachang (Coking Plant) further east.[8] A 23rd station was added at the eastern 4th Ring Road to accommodate nearby residents.[9]

Planning

Line 6 was originally conceived in 1973 as a "pan-handle" shaped route incorporating the central sections of today's Lines 6 and 7.[10] In 1983 Line 6 was dissolved into two distinct lines. The section under Guang'anmen, Luomashi, Zhushikou and Guangqumen Streets and the "handle" branch to Fengtai became Line 7. The rest of the loop with a new south eastern extension to what was at the time the Beijing Jiaohuachang (Coking Plant) complex became Line 6.[11] Line 7 was later revised westward to terminate at a new major railway station called Beijing West Railway Station and Line 9 taking over servicing Fengtai.[12] When Beijing West Station started construction in the early 1990s space was set aside for a subway station allowing Cross-platform interchange for the future Lines 7 and 9.[13] By 1993 the planned section of Line 6 heading to Coking Plant complex was revised as an eastern extension of Line 7, forming the alignment built today.[14]

In 2013, planners revised the design of Line 7 from using the standard 6 car trains to 8 car trains after performing a detailed transport study of the Fatou area. Fatou's population projections were upgraded from 100,000 to 220,000 people and be a significant employment hub in the future. Planners decided that 6 cars trains would have insufficient capacity for the new demand projections. Line 7 was originally planned to use 1500V DC overhead lines to power the longer subway trains. However, the already completed platforms at Beijing West Station assumed the line would use a 750V DC 3rd rail system like Beijing's legacy subway lines and built with vertical clearance for such. The line ultimately used a 1500V DC 3rd rail system as a compromise.[5]

Future

Construction will start on the western extension of line 7 coking plant station to a new Universal Studios theme park in 2015 with a 2019 opening date. Th extension will run primarily through Chaoyang and Tongzhou Districts. The project will add seven new stations and approximately 17 km of new line, of which 2.3 km is elevated.[15][16]

Stations

List of stations from west to east.[17]

Station name

English
Station name

Hanzi
Transfer
Bus transfer
Location
Beijing West Railway Station 北京西站  9  3 9 21 40 52 53 65 67 89 96 109 122 309 349 373 374 387 410 414 616 661 662 663 673 694 741 820 821 843 890 901快 941 941快 982 997 特2 特6 特13 特14 特17 特18 特19 夜5 夜8 夜14 夜15 夜22 夜23 夜36 运通102 专3 Fengtai
Wanzi 湾子 6 38 45 46 53 57 76 85 89 109 122 133 390 410 414 477 691 特7 夜7 夜22 Xicheng
Daguanying 达官营 6 38 42 45 46 53 57 76 80 85 109 122 133 390 410 477 691 特7 夜7 夜22 专27
Guang'anmennei 广安门内 5 6 19 38 40 57 76 78 109 133 381 676 717 741 835 835快 836 838 895 917 917快 特5 夜7
Caishikou 菜市口  4  5 6 48 57 70 83 102 105 109 381 特5 特14 夜4 夜7 夜10 夜18 专13
Hufangqiao 虎坊桥 5 6 7 14 15 23 34 48 57 66 70 102 105 特5 夜7 夜10 夜18
Zhushikou 珠市口 5 17 20 23 48 57 59 66 93 120 622 观光1 特11 夜2 夜7 夜10 夜17 夜18 Xicheng /
Dongcheng
Qiaowan 桥湾 23 57 夜7 夜10 Dongcheng
Ciqikou 磁器口  5  23 39 41 43 57 60 106 116 128 525 623 684 特7 夜7 夜10 夜24 夜28
Guangqumennei 广渠门内 8 12 23 57 夜7
Guangqumenwai 广渠门外 23 57 637 夜7 专164 专165
Shuangjing 双井  10  Chaoyang
Jiulongshan 九龙山  14  11 23 30 35 54 312 348 486 513 541 605 621 677 973 985 夜7 夜25 专5 专87 Chaoyang
Dajiaoting 大郊亭 11 23 31 35 312 348 439 455 513 541 581 657 740 810快 865 特9 夜34
Baiziwan 百子湾 11 23 31 312 439 455 541 581 810快
Huagong 化工
Nanlouzizhuang 南楼梓庄 8 30 31 34 41 348 457 535 561 637 657 677 夜19 夜34
Happy Valley Scenic Area 欢乐谷景区 31 41 夜34 专166
Fatou 垡头
Shuanghe 双合 348 457 561 637 677 夜19
Jiaohuachang 焦化厂 348 457 637 638 677 夜19

Shuangjing Station and Fatou Station are not in operation.
