South African Class NG3 4-6-2T

This article is about one of several different Natal Government Railways locomotive types to be designated "Class N". For other NGR Class N locomotives, see Natal Government Railways Class N locomotives.

NGR Class N 4-6-2T 1907
South African Class NG3 4-6-2T

NGR Hawthorn Leslie no. 4
SAR Class NG3 no. NG4

Type and origin
Power type	Steam
Designer	Natal Government Railways (D.A. Hendrie)
Builder	Hawthorn Leslie and Company
Serial number	2687-2692
Build date	1907
Total produced	6

Specifications
Configuration	4-6-2T (Pacific)
Driver	2nd coupled axle
Gauge	2 ft (610 mm) narrow
Leading dia.	18 in (457 mm)
Coupled dia.	30 in (762 mm)
Trailing dia.	21 in (533 mm)
Wheelbase	17 ft 9 in (5,410 mm)
• Leading	3 ft 6 in (1,067 mm)
• Coupled	5 ft 9 in (1,753 mm)
Length:
• Over couplers	24 ft 11 in (7,595 mm)
Height	9 ft 4 ¹⁄₂ in (2,858 mm)
Frame type	Plate
Axle load	5 LT 16 cwt (5,893 kg)
• Leading	3 LT 14 cwt (3,759 kg)
• 1st coupled	5 LT 16 cwt (5,893 kg)
• 2nd coupled	5 LT 16 cwt (5,893 kg)
• 3rd coupled	5 LT 15 cwt (5,842 kg)
• Trailing	4 LT 8 cwt (4,471 kg)
Adhesive weight	17 LT 7 cwt (17,630 kg)
Loco weight	25 LT 9 cwt (25,860 kg)
Fuel type	Coal
Fuel capacity	21 long hundredweight (1.1 t)
Water cap	784 imp gal (3,560 l)
Firebox type	Round-top
• Firegrate area	11 sq ft (1.0 m²)
Boiler:
• Pitch	4 ft 6 in (1,372 mm)
• Diameter	3 ft 3 ¹⁄₂ in (1,003 mm)
• Tube plates	11 ft 2 ¹⁄₈ in (3,407 mm)
• Small tubes	124: 1 ³⁄₄ in (44 mm)
Boiler pressure	165 psi (1,138 kPa)
Safety valve	Ramsbottom
Heating surface	675.9 sq ft (62.79 m²)
• Tubes	634.9 sq ft (58.98 m²)
• Firebox	41 sq ft (3.8 m²)
Cylinders	Two
Cylinder size	11 ¹⁄₂ in (292 mm) bore 15 in (381 mm) stroke
Valve gear	Walschaerts
Couplers	Bell lift-hook

Performance figures
Tractive effort	8,183 lbf (36.40 kN) @ 75%

Career
Operators	Natal Government Railways South African Railways
Class	NGR Class N, SARClass NG3
Number in class	6
Numbers	NGR 4-9, SAR NG4-NG9
Delivered	1907
First run	1907
Withdrawn	1946

The South African Railways Class NG3 4-6-2T of 1907 was a narrow gauge steam locomotive from the pre-Union era in the Natal Colony.

In 1907, the Natal Government Railways placed six 4-6-2T Pacific type narrow gauge tank steam locomotives in service. In 1912, when these locomotives were assimilated into the South African Railways, they retained their engine numbers, but with an "NG" prefix added. When a system of grouping narrow gauge locomotives into classes was eventually introduced somewhere between 1928 and 1930, they were classified as Class NG3.^[1]^[2]^[3]

Natal's narrow gauge

By 1906, the Natal Government had realised that light railways were essential as feeders to open up fertile districts which were distant from the existing main- and branchlines, particularly when the intervening stretches of country were difficult from an engineering point of view. The second narrow gauge railway line in Natal was constructed from Esperanza, at Umzinto on the South Coast, via Ixopo to Donnybrook.^[1]

The residents of Alexandra County and the Ixopo Division had been pressing for a railway for years. These counties were only tapped by the Railways at their extreme edges. The eastern edge of Alexandra County was served by the South Coast line, which had reached Umzinto in 1900, while the extreme western border of the Ixopo Division was served by the Kokstad line, which had reached Donnybrook in 1905. Between these two lines, for a distance of 100 miles (160 kilometres), means of communication were very difficult, with the upper end of the district at 4,700 feet (1,400 metres) above sea level. Since the cost of a Cape gauge line across this terrain was considered prohibitive, the farmers accepted the 2 ft (610 mm) narrow gauge railway which was offered.^[1]

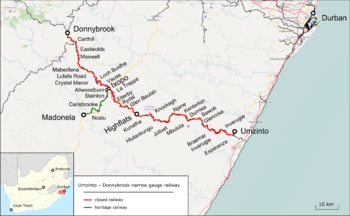

Umzinto-Donnybrook railway

The line was officially opened to traffic on 3 June 1908, by his excellency the Governor of Natal, Sir Matthew Nathan. It was 158 kilometres (98 miles) long from Esperanza, where it met the South Coast line at Umzinto, to Donnybrook, where it met the Underberg branch. A 28 kilometres (17 miles) long branchline from Ixopo to Madonela was completed on 2 February 1914.^[4]

Manufacturer

D.A. Hendrie

Commonly known as the Hawthorn Leslie Side Tanks, the second batch of narrow gauge 4-6-2T tank locomotives of the Natal Government Railways (NGR) were built to the design of NGR Locomotive Superintendent D.A. Hendrie, based on his earlier design of the Hunslet Side Tank 4-6-2T locomotives of 1906. An order for six of these locomotives was placed with Hawthorn Leslie and Company.^[1]^[3]

The locomotives were similar in appearance to the earlier Hunslet Side Tank, but with larger water tanks and more ornate boiler-mounted sandboxes. They also had round-top fireboxes, outside plate frames and used Walschaerts valve gear.^[1]^[3]

Service

Natal Government Railways

The Hawthorn Leslie Side Tanks were acquired specifically to operate the Donnybrook-Esperanza railway. When they were delivered in 1907, in anticipation of the opening of the Donnybrook line the following year, they became part of the Class N on the NGR and were numbered in the range from 4 to 9.^[3]

South African Railways

When the Union of South Africa was established on 31 May 1910, the three Colonial government railways (Cape Government Railways, NGR and Central South African Railways) were united under a single administration to control and administer the railways, ports and harbours of the Union. Although the South African Railways and Harbours came into existence in 1910, the actual classification and renumbering of all the rolling stock of the three constituent railways required careful planning and was only implemented with effect from 1 January 1912.^[2]^[5]

In 1912, the NGR narrow gauge locomotives were included in the SAR's narrow gauge numbering scheme, but were not classified or renumbered and merely had an "NG" prefix, for narrow gauge, added to their existing engine numbers.^[2]^[3]^[6]

In 1915, shortly after the outbreak of the First World War, the German South West Africa colony was occupied by the Union Defence Forces. Since a large part of the territory's railway infrastructure was destroyed or damaged by retreating German forces, an urgent need arose for locomotives for use on the narrow gauge lines in that territory. In 1917, three of these locomotives, numbers NG4, NG6 and NG9, were transferred to the Defence Department for service in South West Africa. Numbers NG4 and NG9, and possibly all three locomotives, returned to South Africa after the war.^[7]

A system of grouping narrow gauge locomotives into classes was only adopted by the SAR in the late 1920s. At that point, the four remaining Hawthorn Leslie Side Tanks, numbers NG4, NG5, NG8 and NG9, were designated Class NG3 on the SAR.^[3]^[6]

In SAR service in South Africa, the Class NG3 remained mainly confined to the Natal narrow gauge branches. One exception was no. NG5, which was transferred to the Avontuur branch in the Eastern Cape in 1939. Here, it was employed on yard duties in and around Humewood Road in Port Elizabeth, where it eventually became the last survivor of the Class NG3. It remained in service until it was sold in 1946.^[3]

References

1 2 3 4 5 Espitalier, T.J.; Day, W.A.J. (1944). The Locomotive in South Africa - A Brief History of Railway Development. Chapter III - Natal Government Railways (Continued). South African Railways and Harbours Magazine, September 1944. pp. 669-670.
1 2 3 Classification of S.A.R. Engines with Renumbering Lists, issued by the Chief Mechanical Engineer's Office, Pretoria, January 1912, pp. 12, 16, 47 (Reprinted in April 1987 by SATS Museum, R.3125-6/9/11-1000)
1 2 3 4 5 6 7 Paxton, Leith; Bourne, David (1985). Locomotives of the South African Railways (1st ed.). Cape Town: Struik. pp. 101–102, 110. ISBN 0869772112.
↑ Statement Showing, in Chronological Order, the Date of Opening and the Mileage of Each Section of Railway, Statement No. 19, p. 187, ref. no. 200954-13
↑ The South African Railways - Historical Survey. Editor George Hart, Publisher Bill Hart, Sponsored by Dorbyl Ltd., Published c. 1978, p. 25.
1 2 South African Railways and Harbours Narrow Gauge Locomotive Diagram Book, 2'0" Gauge, S.A.R. Mechanical Dept. Drawing Office, Pretoria, 28 November 1932
↑ Espitalier, T.J.; Day, W.A.J. (1947). The Locomotive in South Africa - A Brief History of Railway Development. Chapter VII - South African Railways (Continued). South African Railways and Harbours Magazine, December 1947. p. 1033.
